Embedded strain gauge

1.Embedded strain gauge product overview

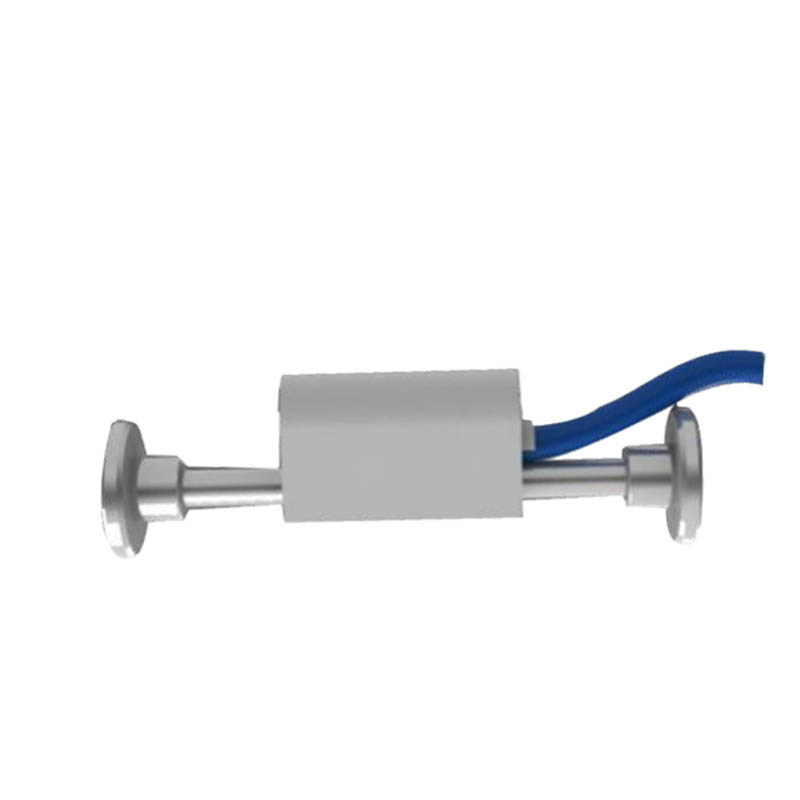

Embedded strain gauge is used to measure the strain in concrete structure and is suitable for direct embedment to monitor its stress and strain.This vibrating strain gauge is an embedded strain gauge.It can be buried in beams, piles, pile foundations, support, hydraulic buildings, linings, piers and bedrocks of various concrete structures for a long time to monitor their stress and strain.The built-in simulated temperature sensor can measure the temperature of the layout point simultaneously and is used for temperature correction of the embedded strain gauge.

2.Embedded strain gauge application scenarios

Bridges, tunnels, rail transit, water conservancy, buildings

3.Embedded strain gauge product features

1.Adopt imported steel string design, with the advantages of high sensitivity and accuracy, good linearity and stability

2.Use hydraulic cables to meet the long-term monitoring environment for hydraulic buildings.

3.Built-in temperature sensor for easy temperature compensation

4.Stainless steel shell design, with characteristics such as compression resistance and radial force resistance

4.Embedded strain gauge technical parameters

Gauge distance L: 100mm

Resolution: ≤0.2% FS

Temperature measurement accuracy: ±0.5℃

Water pressure resistance: ≥0.2 Mpa

Insulation resistance: ≥50MΩ

Temperature measurement range: -20℃~+70℃

Dimensions: 174*26*38mm

Strain measurement range: Tensile: 3000με; Compression: 3000με
