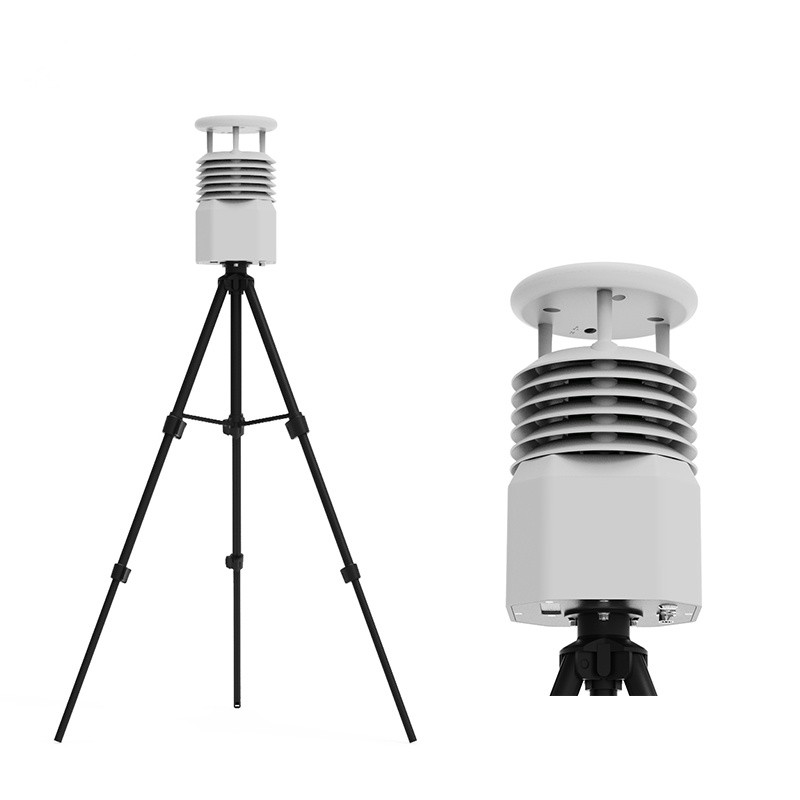

Micro Weather Station is designed for emergency meteorological monitoring in field environments

Featuring an integrated ultrasonic wind speed and wind direction sensor, Micro Weather Station offers high system integration and low power consumption. It supports rapid deployment and various data transmission methods—including 4G, Bluetooth, and RS-485-to-USB—making it ideal for emergency field operations and mobile data collection. The device boasts a high ingress protection rating and comes with a dedicated carrying case for convenient transport.

Developed specifically for field use, Micro Weather Station is a high-precision automatic meteorological observation system. It features a compact design with a total weight of under 5 kg. It includes a telescopic aluminum alloy tripod and a shock-resistant, protective rolling case, ensuring simple transport and setup—no complex calibration is required; it is ready for immediate use upon arrival at the site. The device utilizes a concealed ultrasonic probe integrated into the top cover, which minimizes interference from accumulated rain or snow and obstructions to natural airflow. By employing continuous frequency-modulated ultrasonic signals and relative phase measurement, it accurately detects wind speed (0–60 m/s) and wind direction (0–360°), delivering stable and reliable results.

The sensor housing is constructed from imported ABS material, offering excellent resistance to salt-spray corrosion and an IP65 or higher ingress protection rating, ensuring stable, long-term operation in coastal or remote field environments. It is equipped with a 12,000 mAh high-capacity lithium battery, providing at least 50 hours of continuous operation. A built-in battery level indicator allows operators to monitor remaining power, while an internal storage module can hold over 500,000 data records.

Micro Weather Station supports a wide range of wired and wireless transmission channels, allowing for real-time data transmission or local storage. It is suitable for diverse applications, including meteorological observation, agricultural and forestry surveys, environmental monitoring, marine scientific research, inspections at airports and ports, and educational outreach. It is an excellent solution for short-term emergency observations and mobile monitoring tasks, providing a lightweight hardware platform for acquiring meteorological data in the field.
