Wireless IOT Inclinometer
Model：FT-QJ3
Brand：tianqiong
Wireless IOT Inclinometer is used in structural health monitoring, condition monitoring and many industrial monitoring applications and is able to measure tilt and displacement.
Get a Free Quote- Product details
- Related products
- Related articles
1.Introduction to Wireless IOT Inclinometer Products
Wireless IOT Inclinometer is used in structural health monitoring, condition monitoring and many industrial monitoring applications and is able to measure tilt and displacement.The low-power wireless inclination sensor and wireless inclination meter are a high-performance, highly integrated intelligent low-power product.It is a tilt angle measurement device based on NB-iot narrowband Internet of Things and 4G/GSM transmission.It has its uniqueness, innovation and high integration.This product uses the latest Internet of Things wireless chips with the Internet of Things platform, and is equipped with the IoT cloud platform to realize remote data acquisition, monitoring, analysis, inspection, alarm, classification, geolocation positioning, data report curve download, and mobile phones and other mobile devices APP software to realize monitoring and alarms anytime, anywhere.It adopts the standard MODBUS/TCP standard communication protocol.This product is centered on a microprocessor and can reliably realize the acquisition and processing of inclination angle, horizontal displacement, power and other signals, and can realize the functions of timed data reporting and triggering reporting.

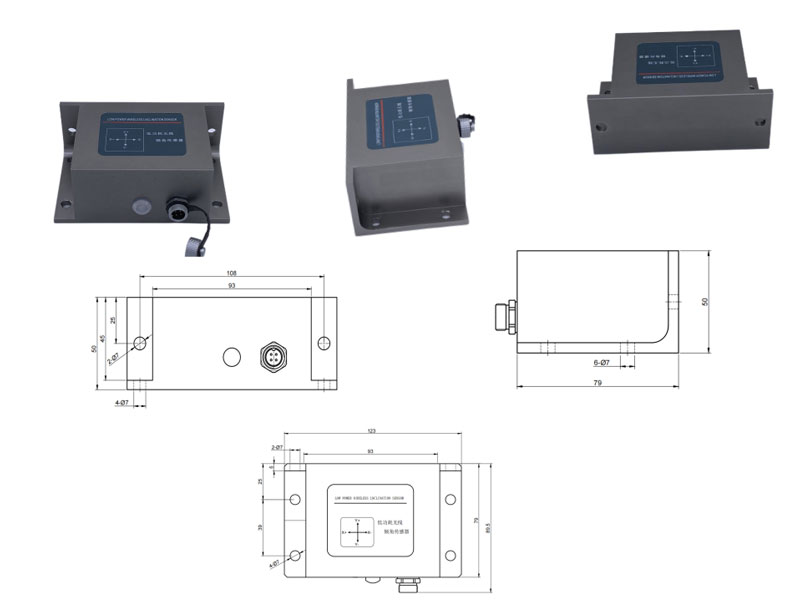

2.Wireless IOT Inclinometer appearance size
3.Main features of Wireless IOT Inclinometer
Biaxial inclination detection
Range ±30°
Output interface RS485
Operating voltage DC3.6V
Timely reporting and trigger reporting
Accuracy 0.01°
With its own horizontal displacement calculation function
Resolution 0.001°
Response frequency 100Hz
Seismic resistance >20000g
Wide temperature operation -40~+85℃
Protection level IP67
4.Wireless IOT Inclinometer application field
High voltage wire tower monitoring
Railway locomotive monitoring
Comprehensive Pipe Gallery
Ancient trees, electric towers
Subway tunnels, terrestrial disaster slopes
Bridge and foundation pit measurement
Houses, ancient buildings
5.Wireless IOT Inclinometer Technical Parameters
| Range | Inclination angle ±30° |
| Number of measurement axes | Dual axis (X/Y) |
| Accuracy | 0.005~0.01° |
| Horizontal displacement | Built-in solution |
| Network style | NB-IoT (B1/B3/B8/B5/B20/B28), 4G GSM full network access |
| antenna | Built-in |
| Sampling interval | Can be set at will, in seconds, if real-time acquisition is required, set to 0 |
| Upload interval | Can be set at will, in minutes, as fast as 1 minute, if you need to set it online in real time to 0 |
| Wake-up mode | Timing, trigger alarm wake-up |
| Configuration Mode | Local configuration/remote configuration |
| Upload information | Inclination angle, horizontal displacement data, battery information, network status, self-test status, signal strength, alarm information, etc. |
| powered by | 3.6V@19Ah one section + one section supercapacitor, external power supply can be selected |
| Power consumption | Standby current ≤50uA, average transmission current ≤100mA |
| Operating temperature | -30℃~70℃ |
| Storage temperature | -40℃~85℃ |
| vibration | ≤3g/10Hz...150Hz (IEC 60068-2-6-2007) |
| Protection level | IP67 |
| communication | RS485 |
| Housing material | Aluminum alloy shell |
| Installation method | Horizontal installation |
