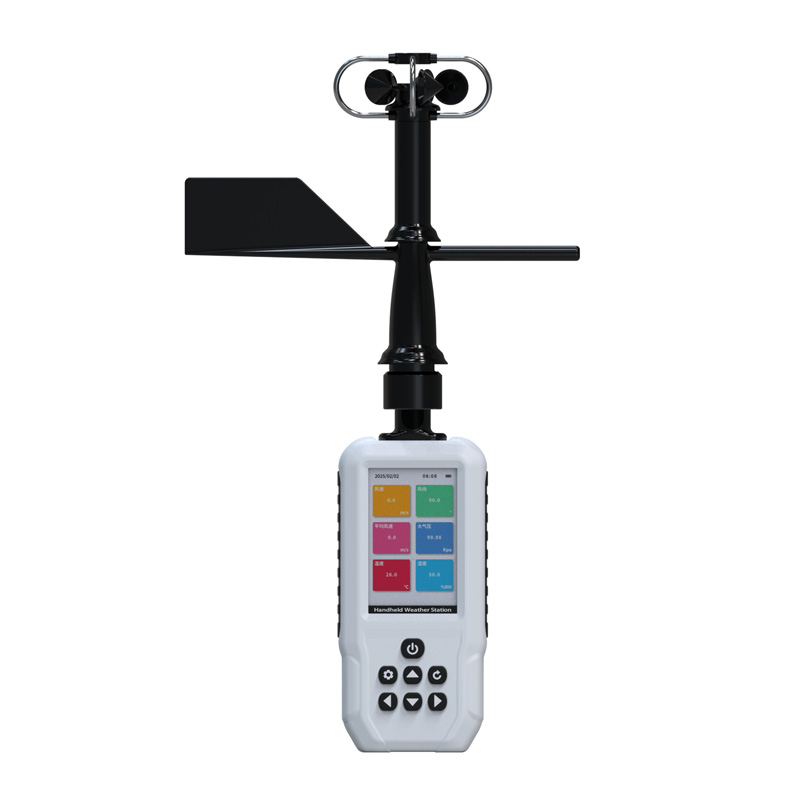

High-Precision Handheld 8-Element Weather Station Enables Rapid On-Site Measurement of Multiple Meteorological Parameters

The high-precision handheld 8-element weather station is a portable and easy-to-operate mobile meteorological observation instrument. It can simultaneously measure wind speed, wind direction, average wind speed, temperature, humidity, atmospheric pressure, altitude, and thermal index. It features a built-in high-capacity storage chip and a Type-C interface, and is widely used in meteorology, environmental protection, agriculture, forestry, and military fields.

Also known as a handheld weather instrument, the high-precision handheld 8-element weather station is a portable and easy-to-operate mobile meteorological observation instrument integrating multiple meteorological elements. The system uses precision sensors and intelligent chips to accurately measure wind speed, wind direction, average wind speed, temperature, humidity, atmospheric pressure, altitude, thermal index, wet-bulb temperature, wave height, dew point temperature, wind chill index, and GNSS tri-mode positioning. The equipment is widely used in meteorology, environmental protection, airports, agriculture, forestry, hydrology, military, warehousing, and scientific research.

In terms of functionality, the device features a 3.5-inch LCD screen that displays real-time data including wind speed, wind direction, average wind speed, temperature, humidity, atmospheric pressure, altitude, thermal index, and wet-bulb temperature. A built-in electronic compass provides 360-degree wind direction monitoring and supports automatic and manual reading. A large-capacity FLASH storage chip can store up to 40,000 meteorological data points, with a data recording interval adjustable from 1 to 60 minutes. The device uses a Type-C communication interface, allowing users to easily export stored data for further processing and analysis. A 3800mAh lithium battery supports low-power design, enabling continuous operation for up to 18 hours. An external DTU-4G module supports data upload to a cloud platform, and the 4G module allows for easy replacement of the IoT SIM card. The device weighs only 363.2g, with dimensions of 167*80*30mm, and its scientifically designed structure makes it easy to carry.

In terms of technical parameters, the wind speed measurement range is 0 to 60 m/s, with an accuracy of ±0.3 m/s and a resolution of 0.01 m/s; the wind direction measurement range is 0 to 360°, with an accuracy of ±3° and a resolution of 0.1°; the average wind speed measurement range is 0 to 60 m/s, with an accuracy of ±0.3 m/s. The temperature measurement range is -40 to 125°C, with an accuracy of ±0.2°C and a resolution of 0.1°C; the humidity measurement range is 0 to 100%RH, with an accuracy of ±2%RH and a resolution of 0.1%RH; the atmospheric pressure measurement range is 30 to 110 kPa, with an accuracy of ±0.1 kPa. The altitude measurement range is 0 to 9165 m, with an accuracy of ±1 m and a resolution of 1 m; the thermal index measurement range is -40 to 140°C, with an accuracy of ±0.2°C. The wave height measurement range is 0 to 14 m, with an accuracy of ±0.2 m; the wet-bulb temperature measurement range is -29 to 70°C, with an accuracy of ±0.2°C. The GNSS supports tri-mode positioning, offering high accuracy and speed, and can be optionally equipped with a single BeiDou module.

This high-precision handheld 8-element weather station, with its lightweight and compact design, comprehensive meteorological element measurement capabilities, and flexible data transmission methods, can quickly collect meteorological data in outdoor operations, field exploration, and emergency rescue scenarios. An optional tripod is available to meet fixed monitoring needs. The equipment requires no setup and is ready to use immediately, significantly lowering the operational threshold for on-site meteorological observation and providing users across various industries with an efficient means of acquiring meteorological data.
