UAV visibility detector

1.UAV visibility detector product features

UAV visibility detector detects the changes in atmospheric backscattered energy, and then uses relevant mathematical models to calculate the atmospheric visibility value.

1.The UAV visibility detector weighs only 110 grams and is designed for meteorological data monitoring and collection in the air flight of unmanned aircraft or small unmanned patrol vehicles;

2.It has a compact appearance, strong anti-electromagnetic interference and dustproof function, and can work normally in an altitude of 4,000 meters and minus 20 degrees;

3.The "four-ultra" visibility meter with ultra-mini appearance, ultra-low wind resistance, ultra-light weight and ultra-low power consumption has a power consumption of only 0.9 watts, making it very suitable for small drone platforms and flight control systems, as well as environmental monitoring using aircraft;

2.UAV visibility detector size and weight

Visibility dimensions: 94mm*69mm*42mm

Visibility + mounting bracket size: 114mm*69mm*73mm

Visibility weight: 110g

3.Main technical parameters of UAV visibility detector

Test range: 10-4000 meters

Measurement accuracy: ±15%

Light source: IR LED

Response time: 10 seconds

Digital output: RS485, RS232, SDI-12

Bluetooth output: BLE5.0 (optional)

Working temperature: -20-50°C

Working humidity: 0-95%

Supply voltage: VDC 12-24V

Power consumption: 0.9W

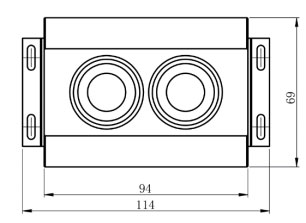

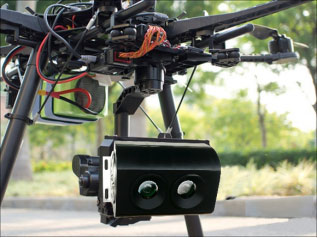

4.UAV visibility detector product size diagram and real image
