Earthquake Aftershock monitoring

1.Earthquake Aftershock monitoring product introduction

Earthquake Aftershock Monitoring is a mobile integrated real-time earthquake monitoring system that provides up-to-date displacement and shaking monitoring.Earthquake Aftershock monitoring is a high-precision wireless digital alarm to protect the safety of rescue workers in emergency rescue operations, protecting the safety of rescue workers on site in a variety of emergencies.Earthquake Aftershock monitoring combines displacement monitoring and vibration monitoring, and also comes with a sound-light alarm function and supports wireless remote operation.It can be used to monitor inclined buildings, glass, building beams, concrete walls, metal tanks, etc.

2.Earthquake Aftershock monitoring product application

Earthquake Aftershock monitoring can be installed on any location and on any structural surface, providing early movement and vibration alarms;

3.Earthquake Aftershock monitoring usage environment

1.Collapsed structure

2.Road traffic collapse

3.Trench rescue

4.Movement of the support system

5.Inclined building beams

6.Glass doors and windows

7.Dangerous building structures, fires/floods or other accidents

4.Earthquake Aftershock monitoring product features

1.Portable, lightweight, and fast deployment

2.User programming, intelligent functions

3.Alarm settings

4.Magnet base, rapid deployment on site

5.In any situation, sound or light alarm

6.Simple and standardized operation process

7.Suitable for a variety of emergency situations

8.High impact resistance machine box

Earthquake Aftershock monitoring's magnet suction cups can be quickly and conveniently installed on metal surfaces, and also provide other fixed accessories.With aftershock displacement rescue alarms, rescuers can concentrate on rescue work under extreme pressure environments, with safety guarantees.

5.Earthquake Aftershock monitoring technical parameters

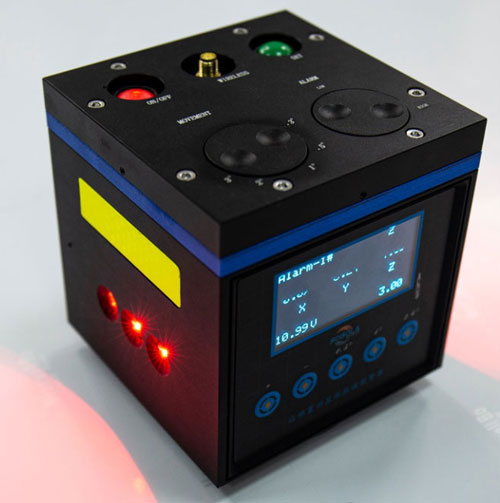

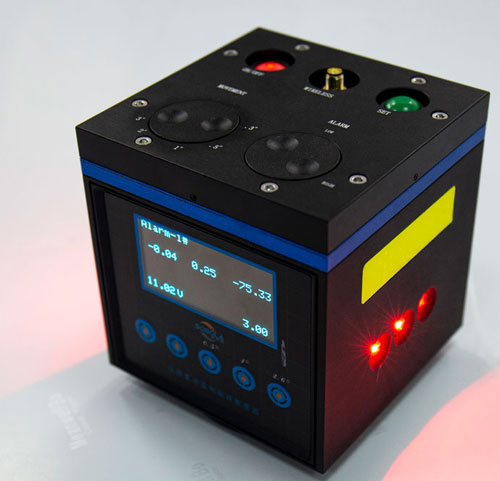

1.The diagonal line of the host screen is 6.5cm, which can display real-time values of displacement and vibration, voltage status, alarm value, and manufacturer model.

2.Measuring range: three-dimensional three-dimensional (360 degrees), which can be monitored by three-dimensional three-dimensional monitoring of X, Y, and Z axes.

3.Resolution: 0.01 degrees

4.Accuracy: 0.1 degrees

5.Sound and light alarm: 6 LED flashes, fire sound 102dB, alarm sound can be turned on and off;

6.Alarm value: Fixed alarm value 0.5 degrees, 1 degree, 2.6 degrees; any alarm value can also be set through dial or keys (any value between 0.1 and 10);

7.Power monitoring: power-on self-test and low voltage alarm prompt;

8.Size: 100*100*102;

9.Battery: Built-in high-capacity lithium battery, working time is greater than 12 hours;

10.Each set of equipment is equipped with 4 aftershock displacement monitors (optional)

11.Fixing method: The magnetic suction cup is adsorbed to the surface of the object to be detected.

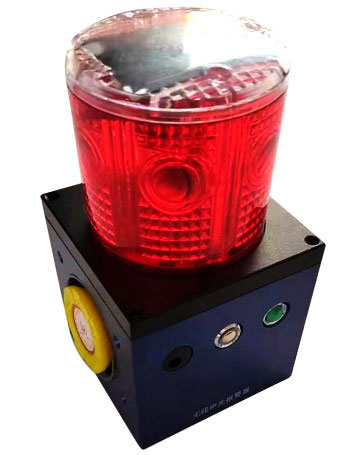

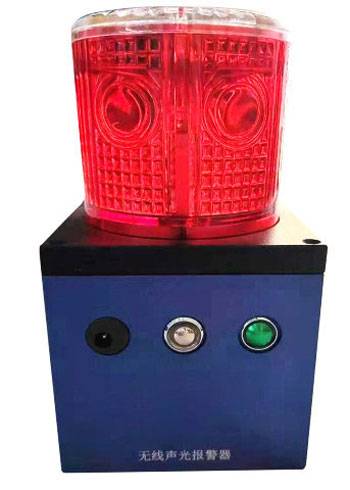

12.Sound and light alarm:

12.1 The sound and light alarm has a reverse one-click search function, which can automatically alarm the alarms of various aftershock monitors and reversely locate the monitor position.

12.2 The acousto-optical alarm can receive aftershock monitor alarms, and distinguish the source of alarm signals through the voice broadcast function, and can simultaneously link 4 aftershock monitors.

12.3 Battery: Built-in high-capacity lithium battery, standby time is greater than 65 hours;

12.4 Transmission distance: 550 meters.

12.5 Alarm method: sound and light alarm, sound 122DB.

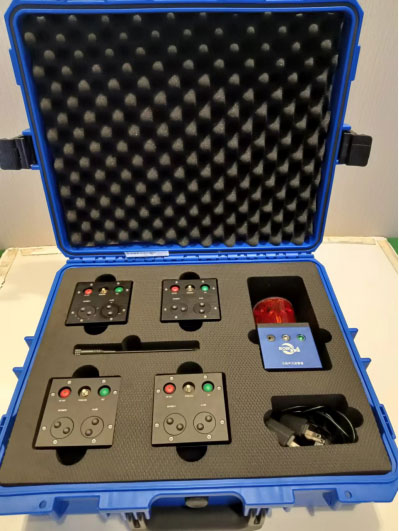

6.Earthquake Aftershock monitoring product configuration

1.Displacement hosts 4 units

2.One sound and light alarm

3.Add 4 magnets

4.1 remote control

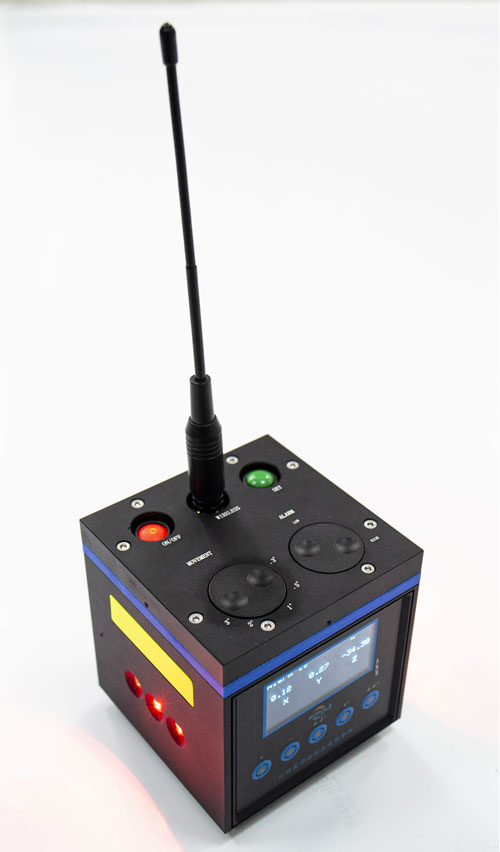

5.1 set of antennas
