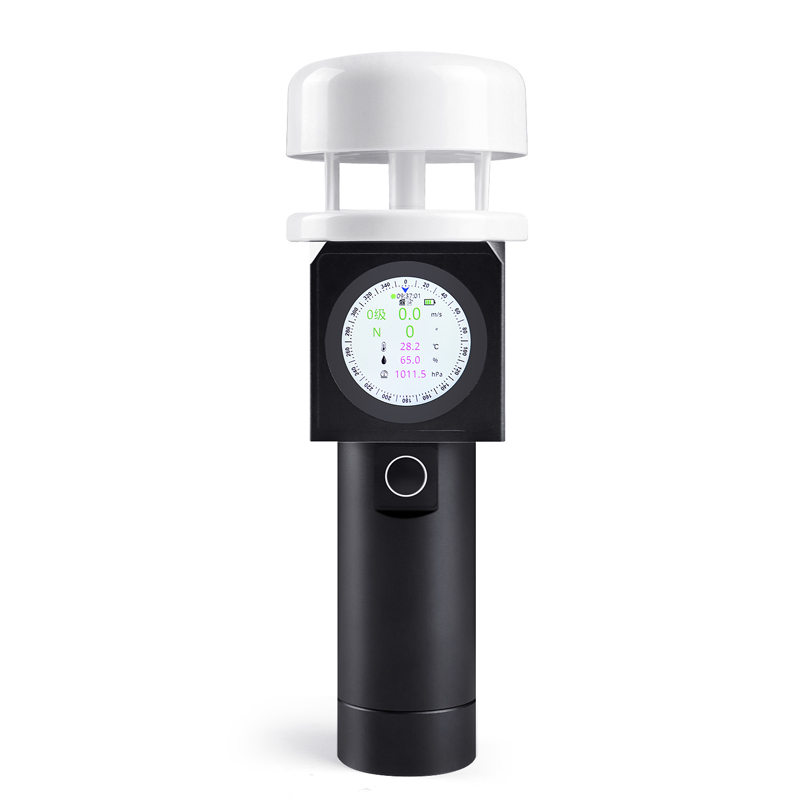

Handheld Weather meter

1、Handheld Weather meter Product Introduction

Handheld Weather Meter is designed for professionals who need to measure weather conditions in the field with the highest accuracy and reliability.Handheld Weather meter series condenses laboratory-grade weather monitoring technology into a handheld device, adding a handle, power supply, display, wireless data transmission module, and software. Integrating three core technologies: ultrasonic sensing, multi-module integration, and intelligent IoT, it enables one-stop collection of accurate weather data for outdoor scenarios.

We've incorporated specialized designs tailored to the operational needs and environments of handheld weather stations. For example, a display allows on-site observers to directly read data, while also storing data on a TF card for at least 365 days of monitoring data. A dedicated app uses Bluetooth for data transmission, allowing users to receive real-time monitoring data on their phone.

Specially designed handle (made of an all-aluminum alloy) is lightweight and easy to hold with one hand. The bottom mounting thread allows for tripod mounting, making it ideal for field inspections.

2、Handheld Weather meter Key Features

No moving parts, zero wear

Maintenance-free, long service life

Uses a reflective ultrasonic probe for a more compact design

Powered by a removable standard 18650 rechargeable lithium battery

Optional sensors for temperature, humidity, air pressure, radiation, and PM2.5

Built-in Bluetooth transmission module

App data display interface

3、Handheld Weather meter Typical Applications

Handheld Multi-factor Meteorological Monitoring

Mobile Inspection

Power Safety Inspection

Ship, Dock, and Navigation Inspection

Urban Air Quality Inspection

4、Handheld Weather meter Technical Parameters

Wind Speed: 0-40m/s

Wind Force Level: 1-12

Wind Direction: 0-359°

Wind Direction: East, South, West, North, Northeast, Southeast, Southwest, Northwest

Temperature: -40°C to +80°C

Humidity: 0-100%

Air Pressure: 300-1100hPa

Altitude: Above mean sea level (optional)

Illuminance: 0-200,000 lux (optional)

Radiance: 0-2000W/m² (optional)

UV Index: 0-15 (optional)

PM2 .5/PM10: 0-2000μg/m³ (optional)

Data transmission method: Bluetooth

Data display: Mobile app/1.6-inch circular touchscreen

Display: Touchscreen

Data storage: TF card

Charging/data interface: Power adapter, 5V/2A output/Type-C port

Power requirement: 3x18650 rechargeable lithium batteries

Battery operating time: Fully charged (3x18650 lithium batteries), up to 24 hours of operation (depending on weather conditions)

Dimensions: Ø82x249mm
