Negative oxygen ion monitoring station

1.Product introduction of Negative oxygen ion monitoring station

Negative oxygen ion monitoring station is a group of unmanned monitoring stations that can continuously collect and record changes in air quality at 24-hour real-time monitoring points.Negative oxygen ion monitoring station can monitor the concentration of negative oxygen ions in the air all day long, and can also expand monitoring projects according to user needs, such as: air temperature, air humidity, PM2.5, PM10, atmospheric pressure, oxygen content, noise, wind speed, wind direction and other meteorological elements; modular structure design, sensors can be replaced separately, equipped with professional installation brackets, data can be read directly through the LED screen on site, and data can be viewed in real time on the remote cloud platform/WEB/WeChat official account, which is convenient for later operation and maintenance.

2.Negative oxygen ion monitoring station application scope

Tourist scenic spots, ecological manors, wetland parks, waterfall parks, forest parks, nature reserves, sales offices, schools

3.Technical parameters of Negative oxygen ion monitoring station

1.Wind speed: measurement principle ultrasonic wave, 0~60m/s (±0.1m/s) resolution 0.01m/s; (Invention patent, Patent No.ZL 2021 1 0237536.5)

2.Wind direction: measurement principle ultrasonic wave, 0~360° (±2°) resolution 1°; (Invention patent, patent number ZL 2021 1 0237536.5)

3.Air temperature: measurement principle diode junction voltage method, resolution of 0.01℃; (Beijing Meteorological Bureau calibration certificate)

4.Air humidity: measurement principle capacitive type, 0-100%RH (±0.3%RH) resolution 0.1%RH; (Calibration certificate of Beijing Meteorological Bureau)

5.Atmospheric pressure: measurement principle piezoresistive type, 300-1100hpa (±0.25%), resolution 0.1hpa; (Calibration certificate of Beijing Meteorological Bureau)

6.PM2.5: Measure the principle light scattering, 0-1000ug/m3 (±10%) resolution 1ug/m3

7.PM10: Measure the principle light scattering, 0-1000ug/m3 (±10%) resolution 1ug/m3

8.Noise: measurement principle capacitive type, 30-120dB (±1.5dB) resolution 0.1db

9.Negative oxygen ions: Measurement principle cylindrical electrode suction type, 00,000 to 100,000 units/cm³ (±10%) resolution 1 unit/cm³

10.Oxygen content: measurement principle electrochemistry, 0~25%Vol (±3%FS) resolution 0.1%

11.Data storage: can store one year's original monitoring data;

12.Data transmission: GPRS/4G/optical fiber

13.Power consumption: 800w

14.Power supply method: 220V mains, solar energy (optional)

15.Working environment: temperature -40℃-60℃, humidity 0%-100%

16.Screen: 2m*1m, made of 36 P10 single red unit boards, unit board size 32cm*16cm

17.Upright pole: Carbon steel double upright columns, each upright is made of two 1.5-meter upright flanges, which can withstand strong typhoons of level 15

18.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification

19.The manufacturer has a computer software registration certificate

20.The manufacturer is a 3A-level credit enterprise

4.Product features of Negative oxygen ion monitoring station

1.High integration, flexible solution: the system can integrate negative oxygen ions, air temperature, air humidity, PM2.5, PM10, atmospheric pressure, oxygen content, noise, wind speed, and wind direction

2.System stability: We have cooperated with thousands of park scenic spots, stable background operation, maintenance-free, and low failure rate

3.Various transmissions: The transmission method can be customized according to the on-site network conditions, 2G/4G/fiber

4.Support expansion: Support sensor expansion, 485 interface and modbus protocol sensor can be used directly

5.Diverse display solutions: Point-to-point, point-to-many, and multi-to-point LED screen data display solutions can be selected according to on-site needs.

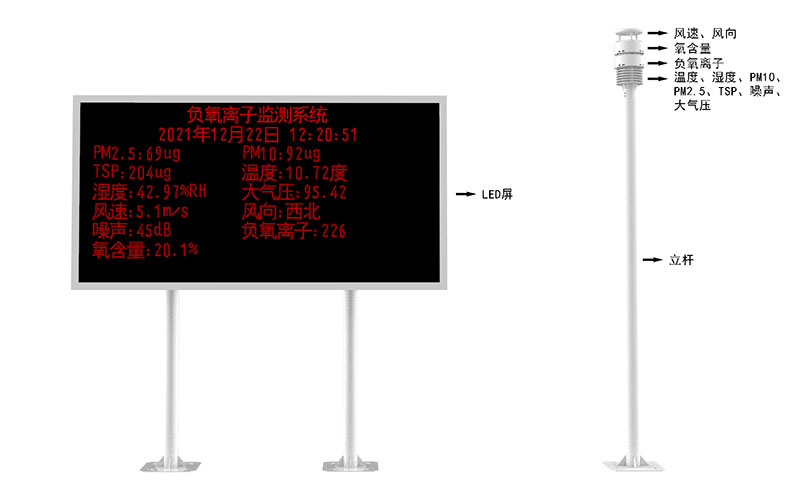

5.Negative oxygen ion monitoring station product structure diagram

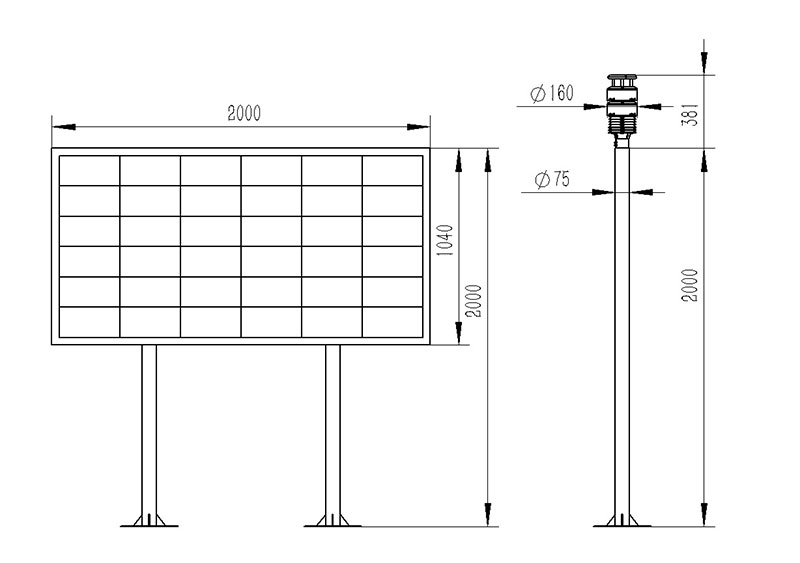

6.Negative oxygen ion monitoring station product size diagram

7.Introduction to Negative oxygen ion monitoring station cloud platform

1.CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation.

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud server and cloud data storage are stable and reliable, easy to scale, and load balancing.

5.Support SMS alarm and threshold settings

6.Support map display and viewing device information.

7.Support data curve analysis

8.Support data export table form

9.Supports data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
