scenic weather station

1.Introduction to the product of scene weather station

Scenic weather stations are weather monitoring equipment tailor-made for tourist attractions, equipped with sensors and automated systems to monitor key weather parameters.The scene weather station can monitor the concentration of negative oxygen ions in the air all day long, and can also expand monitoring projects according to user needs, such as: air temperature, air humidity, PM2.5, PM10 and other meteorological elements; modular structural design, sensors can be replaced separately, equipped with professional installation brackets, data can be read directly through the LED screen on site, and data can be viewed in real time on the remote cloud platform/WEB/WeChat official account, which is convenient for later operation and maintenance.

2.Application scope of scenario weather station

Tourist scenic spots, ecological manors, wetland parks, waterfall parks, forest parks, nature reserves, sales offices, schools

3.Scenic weather station technical parameters

1.Air temperature: measurement principle diode junction voltage method, resolution of 0.01℃; (Beijing Meteorological Bureau calibration certificate)

2.Air humidity: measurement principle capacitive type, 0-100%RH (±0.3%RH) resolution 0.1%RH; (Beijing Meteorological Bureau Calibration Certificate)

3.PM2.5: Measure the principle light scattering, 0-1000ug/m3 (±10%) resolution 1ug/m3

4.PM10: Measure the principle light scattering, 0-1000ug/m3 (±10%) resolution 1ug/m3

5.Negative oxygen ions: Measurement principle cylindrical electrode suction type, 00,000 to 100,000 units/cm³ (±10%) resolution 1 unit/cm³

6.Data storage: can store one year's original monitoring data;

7.Data transmission: GPRS/4G/optical fiber

8.Power consumption: 800w

9.Power supply method: 220V mains, solar energy (optional)

10.Working environment: temperature -40℃-60℃, humidity 0%-100%

11.Screen: 2m*1m, made of 36 P10 single red unit boards, unit board size 32cm*16cm

12.Upright pole: Carbon steel double upright columns, each upright is made of two 1.5-meter upright pole flanges, which can withstand strong typhoons of level 15

13.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification

14.The manufacturer has a computer software registration certificate

15.The manufacturer is a 3A credit enterprise

4.Product features of scenic weather station

1.High integration, flexible solution: the system can integrate negative oxygen ions, air temperature, air humidity, PM2.5, PM10

2.System stability: We have cooperated with thousands of park scenic spots, stable background operation, maintenance-free, and low failure rate

3.Various transmissions: The transmission method can be customized according to the on-site network conditions, 2G/4G/fiber

4.Support expansion: Support sensor expansion, 485 interface and modbus protocol sensor can be used directly

5.Diverse display solutions: Point-to-point, point-to-many, and multi-to-point LED screen data display solutions can be selected according to on-site needs.

5.Scenic weather station product structure diagram

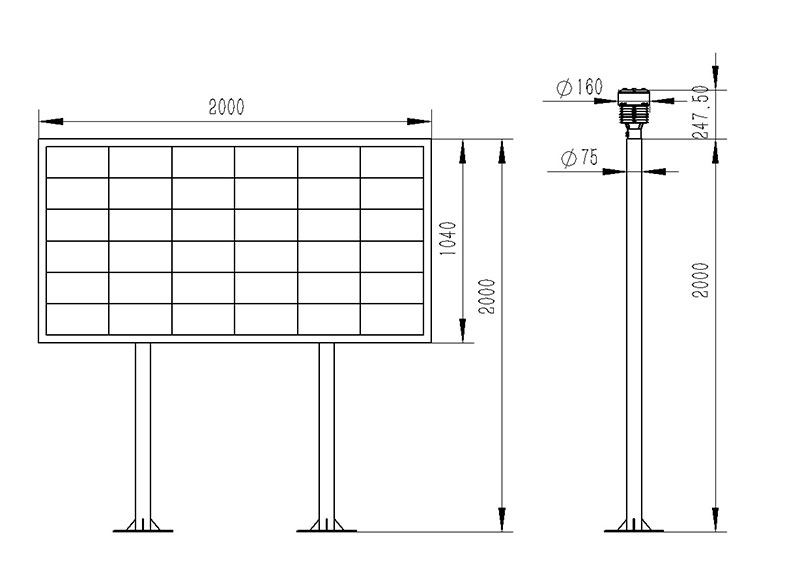

6.Scenic weather station product size diagram

7.Introduction to the scenic weather station cloud platform

1.CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation.

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud server and cloud data storage are stable and reliable, easy to scale, and load balancing.

5.Support SMS alarm and threshold settings

6.Support map display and viewing device information.

7.Support data curve analysis

8.Support data export table form

9.Supports data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
