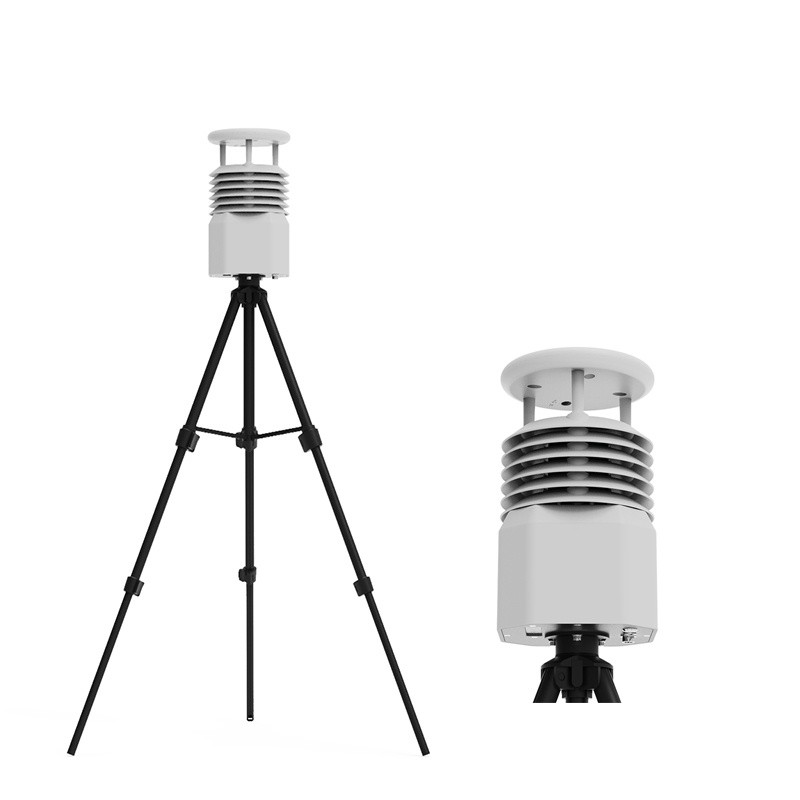

Portable Weather Station Meteorological Data Collection for Field and Emergency Scenarios

Portable Weather Station This highly integrated, low-power automatic meteorological instrument features an all-in-one sensor suite for five key parameters. It allows for rapid, plug-and-play installation—requiring no complex debugging—and supports multiple data transmission methods. It provides real-time monitoring of wind speed, wind direction, temperature, humidity, and atmospheric pressure, making it well-suited for meteorological data collection in field, emergency, and scientific research environments.

Portable Weather Station Designed as a portable, rapidly deployable, and high-precision automatic meteorological monitoring instrument, it is primarily intended for data collection in field, emergency, and temporary observation scenarios. The device is highly integrated and energy-efficient; it requires no complicated setup and can be deployed quickly on-site, effectively addressing the limitations of traditional fixed weather stations that cannot cover temporary or ad-hoc locations.

Portable Weather Station Equipped with an integrated five-parameter sensor, the device captures real-time data on wind speed, wind direction, air temperature, air humidity, and atmospheric pressure. The sensor housing is constructed from imported ABS material, offering excellent resistance to salt-spray corrosion and an IP65 or higher ingress protection rating, ensuring stable, continuous operation in harsh environments such as coastal areas or open field sites. Wind speed and direction are measured using ultrasonic technology—with a wind speed range of 0–60 m/s and a full 0–360° range for wind direction. Temperature is measured via the diode junction voltage method, humidity via a capacitive sensor, and atmospheric pressure via a piezoresistive sensor. Each parameter offers high measurement accuracy and resolution, ensuring the reliability of the collected data.

Portable Weather Station The device supports various data transmission methods, including wired connections, Bluetooth, and GPRS. Collected meteorological data can be transmitted in real-time, facilitating both on-site viewing and remote monitoring via a backend system. Thanks to its rapid deployment capabilities, the instrument is frequently used for short-term emergency meteorological observation tasks—allowing for the quick setup of monitoring points during sudden weather events or field scientific expeditions to capture real-time, on-site meteorological data. Portable Weather Station is suitable for a wide range of sectors, including meteorological monitoring, agriculture and forestry, environmental protection, marine observation, airports and ports, as well as academic research and education. In mountainous regions or remote field sites—where establishing traditional weather stations is challenging—Portable Weather Station enables the rapid deployment of temporary monitoring points. It provides continuous, accurate, and foundational meteorological data, supporting tasks such as weather analysis, environmental assessment, and scientific research.
