Digital Weather Station

1.Introduction to Digital Weather Station

Digital Weather Station is suitable for outdoor use and can monitor meteorological elements such as wind speed, wind direction, temperature, humidity, air pressure, optical rainfall, total radiation, PM2.5, PM10, etc.BQX9 Digital Weather Station is a highly integrated, low-power, fast installation and easy for field monitoring.

The device supports wired, Bluetooth, GPRS and other transmission methods, is debug-free and can be quickly arranged.It is suitable for the acquisition of meteorological data such as short-term emergency meteorological observations and mobile meteorological monitoring.It is widely used in meteorology, agriculture and forestry, environmental protection, ocean, airport, port, scientific investigation, campus education and other fields.

The device adopts a nine-element integrated sensor, which can conduct real-time observation of meteorological elements such as wind speed, wind direction, temperature, humidity, air pressure, optical rainfall, total radiation, pm2.5, pm10, etc.The sensor shell is made of imported Stainless steel material, which is more effective in resisting environments such as salt spray, and has a protection level of more than IP65.

2.Digital Weather Station product features

1.The hidden ultrasonic probe on the roof cover can avoid interference from rain and snow accumulation, and avoid natural wind shading☆

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase☆

3.Wind speed, wind direction, temperature, humidity, air pressure, optical rainfall, radiation, pm2.5, pm10 nine-element integrated sensor☆

4.Standard configuration: GPRS, Bluetooth, 485 to USB

5.Aluminum alloy bracket, retractable

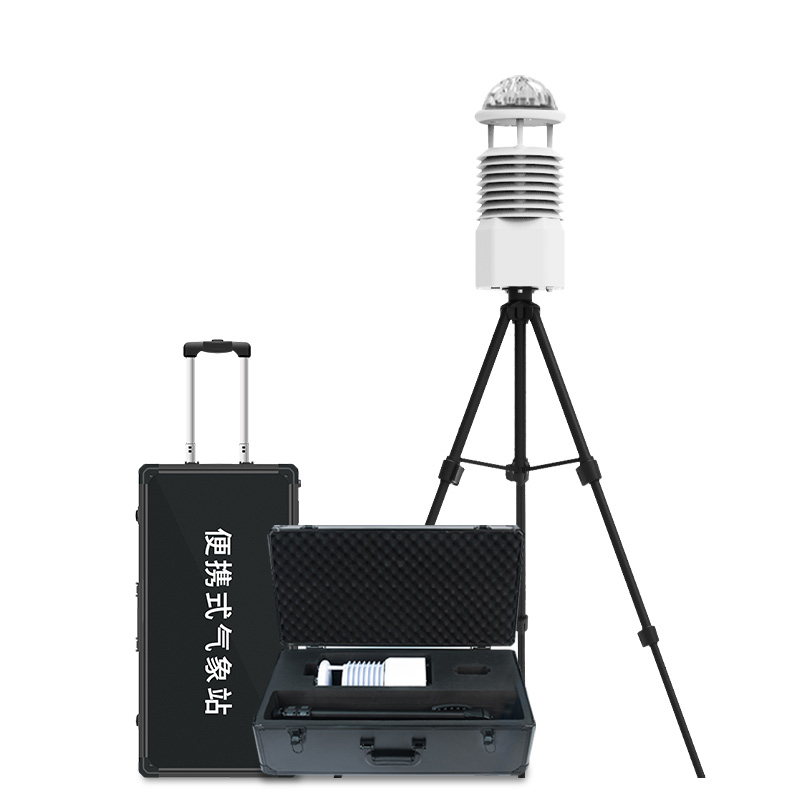

6.Shock-absorbing protective trolley case, easy to carry

3.Technical parameters of Digital Weather Station

1.Wind speed: measurement principle: ultrasonic wave, range: 0～60m/s, accuracy: 0.1m/s+0.01v, resolution: 0.1m/s;

2.Wind direction: measurement principle: ultrasonic wave, range: 0~360°, accuracy: ±2°, resolution: 1°;

3.Air temperature: measurement principle diode junction voltage method, range: -40-80℃, accuracy: ±0.3℃ (25℃), resolution: 0.01℃;

4.Air humidity: measurement principle capacitive type, range: 0-100%RH, accuracy: ±3%RH (20%~80%), resolution: 0.01%RH;

5.Atmospheric pressure: measurement principle piezoresistive type, range: 300-1100hpa, accuracy: ±0.25%, resolution: 0.1hpa;

6.PM2.5: Range: 0-1000ug/m3, accuracy: ±10% (＜500 micrograms), resolution: 1ug/m3;

7.PM10: Range: 0-1000ug/m3, accuracy: ±10% (＜500 micrograms), resolution: 1ug/m3;

8.Total radiation: range: 0~1242W/㎡, accuracy: <±3%, resolution: 1W/㎡;

9.Optical rainfall: range: 0-4mm/min, accuracy: ≤±4%, resolution: 0.01mm;

10.Data storage: no less than 500,000 pieces;

11.Power consumption: 1.5W

12.Lithium battery: capacity 12000maH, battery life ≥50h, battery capacity display function

13.Total weight of equipment: ≤5kg;

14.Layout time: 1 person, no more than 2 minutes to complete the layout;

15.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification

16.The manufacturer has a computer software registration certificate

17.The manufacturer is a 3A credit enterprise

4.Introduction to Digital Weather Station computer software

1.Software for receiving, storing, viewing and analyzing PC stand-alone version of data

2.Support serial port data reception, processing and display

3.Support json strings, modbus485 and other communication methods

4.The storage time can be set by itself.The acquisition time can be set by itself in modbus485 acquisition mode

5.Support self-service addition, deletion, and modification of monitoring parameters protocols, names, icons, etc.

6.Support data post-processing function

7.Support external running of javascript scripts

5.Introduction to Digital Weather Station Android APP

1.Android stand-alone version of data reception, storage, viewing and analysis software

2.Support Bluetooth data reception

3.The software background reception and processing after the mobile phone is dormant

4.Json data is automatically added to the device, modbus device supports scanning code to add the device

5.Support historical data viewing, analysis, and export tables, support curve display and single data point viewing

6.Support data post-processing function

7.Support external running of javascript scripts

6.Introduction to Digital Weather Station Cloud Platform

1.CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud server and cloud data storage, stable and reliable, easy to expand, and load balanced

5.Support SMS alarm and threshold settings

6.Support map display and viewing device information

7.Support data curve analysis

8.Support data export table form

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
