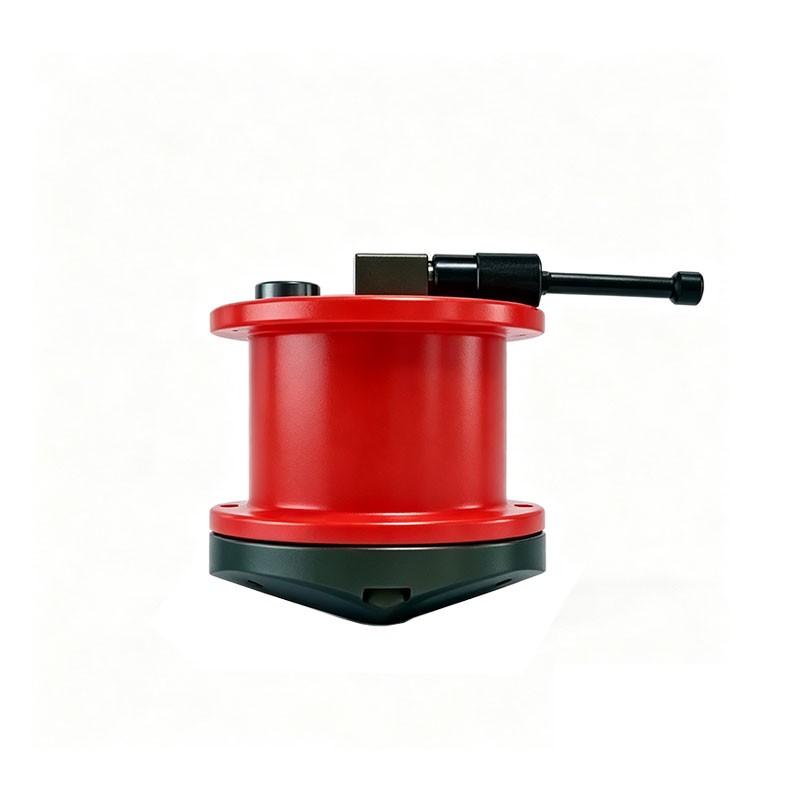

Doppler Current Profiler
Model：FT-HL3
Brand：tianqiong
Doppler Current Profiler is a device that uses sound waves to measure the velocity and direction of water flow throughout a body of water. It monitors parameters such as flow velocity, flow direction, pressure, and water temperature.
Get a Free Quote- Product details
- Related products
- Related articles
Doppler Current Profiler detailed product introduction and technical parameters
Doppler Current Profiler is a device that uses sound waves to measure the velocity and direction of water flow throughout a body of water. It monitors parameters such as flow velocity, flow direction, pressure, and water temperature.
| Technical Specifications | Parameters |
| Sound wave frequency | 600kHz |
| Profile scope | Broadband 30~70m Narrowband 35~80m |
| Beam count | 4-beam Janus |
| Number of units | 1~255 floors |
| Layer thickness | 0.5~5m |
| Speed measurement range | 0~500cm/s |
| Flow velocity measurement accuracy | 0.3%±0.3cm |
| Flow rate resolution | 0.1cm |
| Data refresh rate | 2~10hz |
| Blind spot | 1m |
| Vector range | 0-360° magnetic angle |
| Flow resolution | 0.01° |
| Flow Accuracy | ±2° |
| Temperature range | -5~40°C |
| Temperature resolution | 0.01°C |
| Temperature accuracy | 0.1°C |
| Communication Interface | RS-232 or RS-422 |
| Temperature sensor | Range: -5℃ to 45℃; Accuracy: ±0.1℃ |
| Pressure sensor | Range: Determined by the depth rating; Accuracy: ±0.25% |
| Attitude compass sensor | Range: Roll ±85°|Pitch ±85°|Heading 0-360°; Accuracy (RMS): Roll 0.2°|Pitch 0.2°|Heading 0.8°; Resolution: 0.1° |
| Average power consumption | ≤5W |
| Operating temperature | -5℃-45℃ |
| Storage temperature | -40℃-70℃ |
| Power supply interface | 20V-50V, 2A |
