location：Home>Products>Hydrological Monitor>Radar life detector>Thermal Imaging Infrared Life Detector

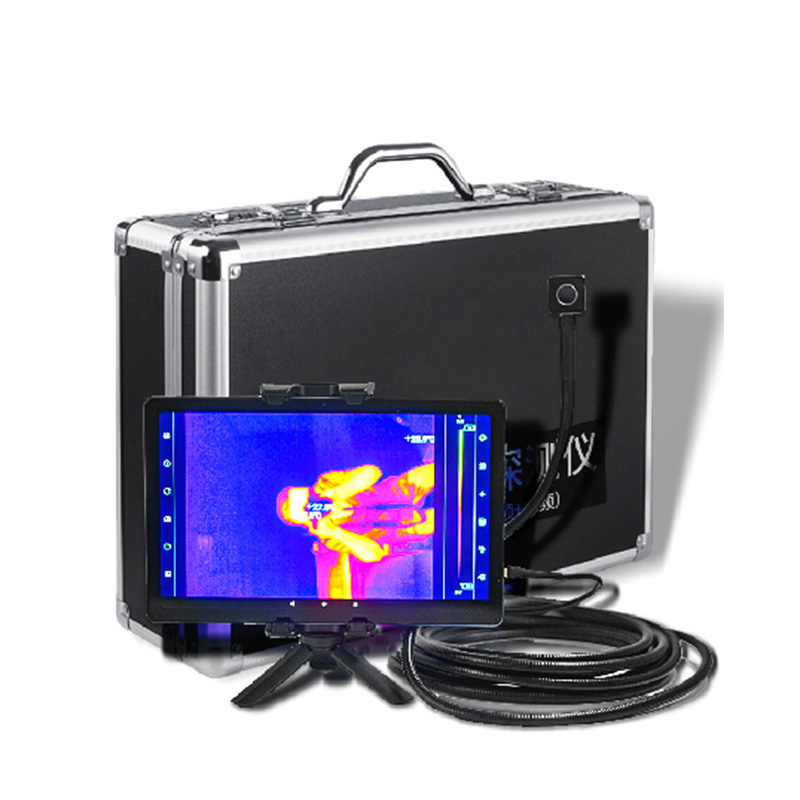

Thermal Imaging Infrared Life Detector
Model：FT-860T
Brand：tianqiong
Thermal Imaging Infrared Life Detector uses infrared technology to detect thermal emissions from various objects, detecting signs of life by sensing temperature differences.
Get a Free Quote- Product details
- Related products
- Related articles
Thermal Imaging Infrared Life Detector detailed product introduction and technical parameters
Thermal Imaging Infrared Life Detector uses infrared technology to detect thermal emissions from various objects, detecting signs of life by sensing temperature differences.
| Thermal Imaging Infrared Life Detector Basic Configuration | ||
| Implementation standards | Implement GB 4943.1-2022 "General Technical Specifications for Passive Metal Detection Doors" | Key parameters |
| ☆☆☆Performance | 6 graphic modes can be taken and recorded, making it easy to summarize and analyze; it can be extended into small gaps. | ☆☆☆ |
| Resolution | 10.36-inch incell full-size full screen 2000*1200 resolution; | |
| Host Performance | 8-core graphics processing chip | |
| Memory | 128GB | |
| Snake tube length | 5 | |
| Pickup sensitivity | 32dB | |
| Working wavelength | 8-14um | |
| Frame rate | 25HZ | |
| Temperature measurement range | -15°C -- 600°C | |
| Temperature measurement accuracy | ±2°C or ±2% of the reading | |
| Battery | 6000mA lithium battery; | |
| Operating temperature | -10°C -- 75°C | |
| Storage temperature | -45°C -- 85°C | |
| Applicable aspects | Fire rescue, military reconnaissance, security search and other tasks | |
