Ultrasonic Snow Depth Detector Sensor

1.Ultrasonic Snow Depth Detector Sensor Product Introduction

Ultrasonic Snow Depth Detector Sensor has unparalleled accuracy in measuring snow levels, providing continuous, accurate snow accumulation measurements.Ultrasonic Snow Depth Detector Sensor is a sensor that uses ultrasonic technology to detect distances on snow surfaces.The sensor adopts an integrated capacitive electrostatic transducer probe design, with high sensitivity, strong anti-interference ability and high accuracy.

2.Ultrasonic Snow Depth Detector Sensor Technical Indicators

Power supply: DC12V

Working environment: -40-60℃, humidity ≤100% without condensation

Communication interface: RS485

Operating current: 18mA DC12V

Minimum data interval: 0.2S

Housing material: aluminum alloy material

Range: 0-2000mm

Measurement resolution: 1mm

Accuracy: 1mm±0.2%

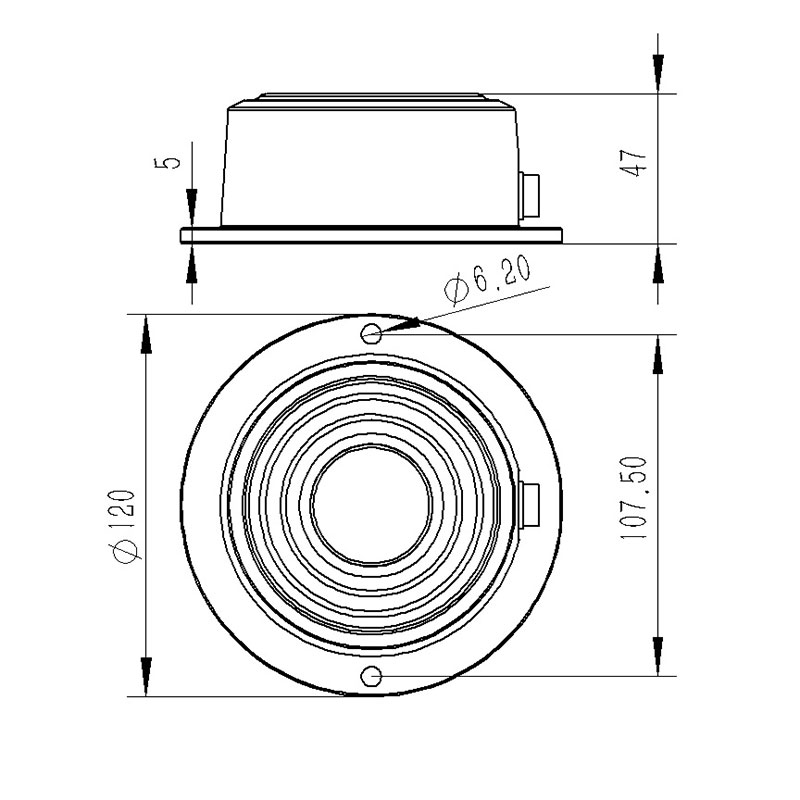

3.Ultrasonic Snow Depth Detector Sensor Product Size Diagram

4.Ultrasonic Snow Depth Detector Sensor product use

The equipment installation location should be open

The equipment installation cross arm should be guaranteed to be at least 1M

There should be no obstruction above the device

The distance from the equipment to the ground level should be within 20cm-200cm.In order to ensure measurement accuracy, the recommended distance is 100cm.

The equipment installation bracket should be kept horizontal.It is best to treat the reflective ground of the sensor horizontally.The reflection point should be within a radius of 1 meter.The weed interference should be avoided.
