Soil Temperature Moisture Salt Sensor

1.Soil Temperature Moisture Salt Sensor Technical Indicators

Soil Temperature Moisture Salt Sensor is an important tool for observing and studying the occurrence, evolution, improvement and water-salt dynamics of saline soils.

1.Power supply: DC12V

2.Power consumption: less than 0.1W

3.Working temperature: -30~70℃

4.Communication interface: RS485

5.Operating current: 8mA DC12V

6.Minimum data interval: 60S

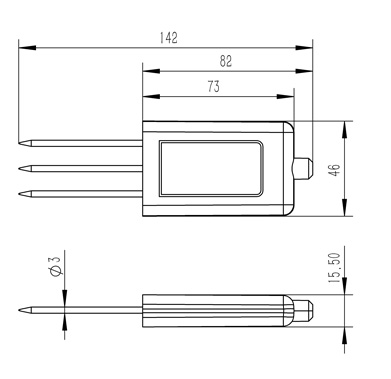

2.Soil Temperature Moisture Salt Sensor Product Size Diagram

3.Precautions for using Soil Temperature Moisture Salt Sensor

1.The sensor installation should be carried out strictly in accordance with the installation instructions.

2.When multiple sensors work at the same time, they must be spaced more than 5 meters apart.

3.The sensor measurement principle is limited.The sensor measurement site is a central radius of 5 meters.There should be no electromagnetic cables and strong magnetic radiation interference.

Avoid huge errors and damage caused by sensor measurements.

4.The installation environment of the sensor should comply with the measurement range of the sensor to avoid irregular behaviors such as exceeding the range.

5.The sensor installation should be avoided in the environment of strong acids, strong alkalis, heavy oil and polluted heavy metals.

6.The sensor is a soil measurement sensor, and it is prohibited to use this sensor for other behaviors.

7.The sensor installation environment cannot have strong vibration.

8.The sensor cannot have too strong external force.

9.Disassembly is prohibited, and disassembly will not provide any services.

10.The sensor probe is relatively sharp, so you should wear protective gear according to regulations when using it.

11.The use and maintenance of equipment should be carried out strictly in accordance with the above precautions.If there is any illegal use, the company will not bear the relevant responsibility.

4.Soil Temperature Moisture Salt Sensor parameters
