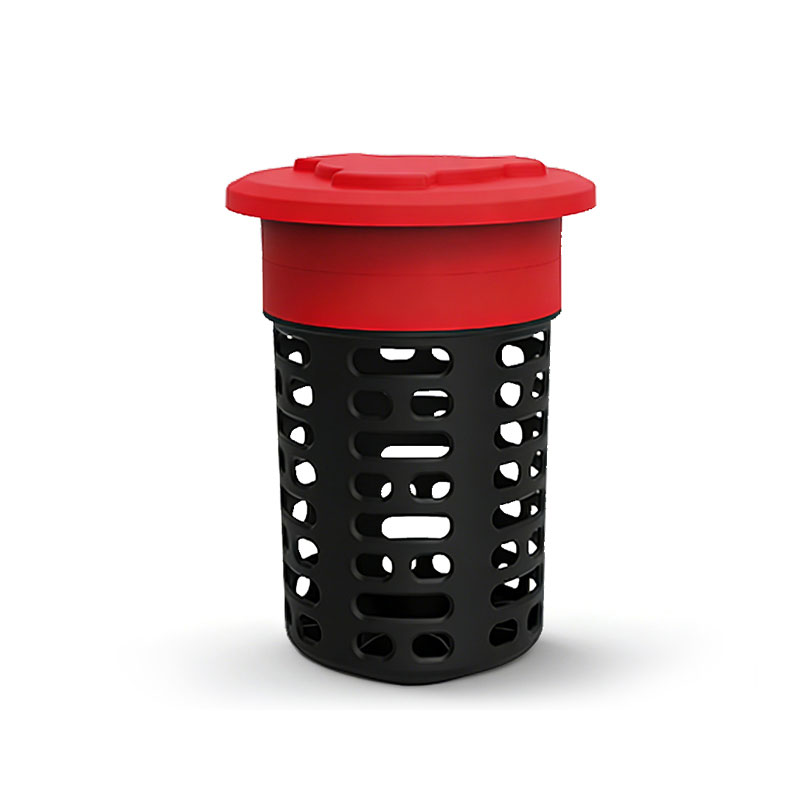

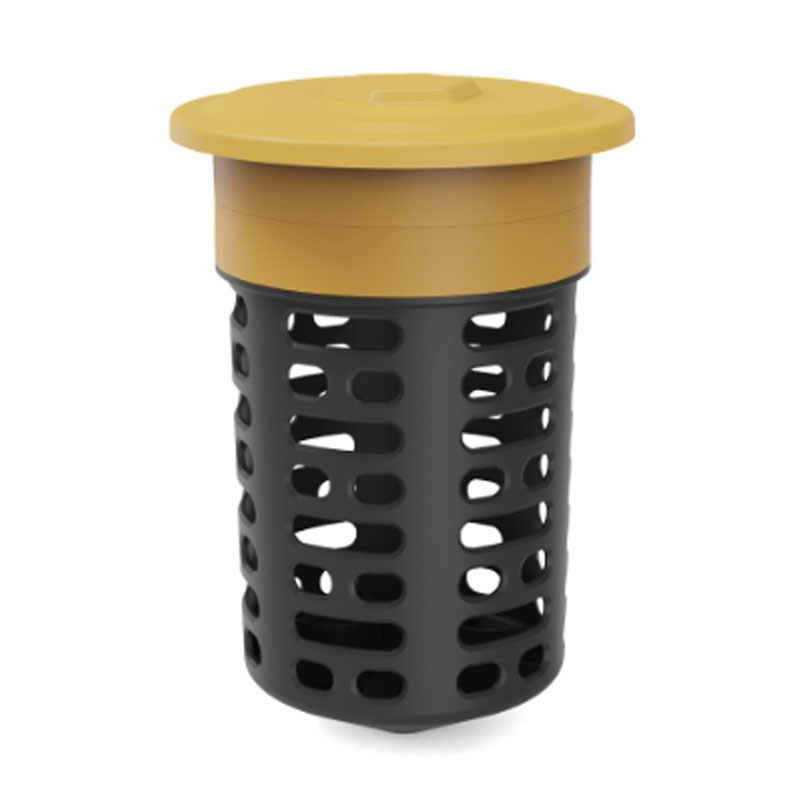

Termite Bait Stations

1.Termite Bait Stations Product Applications

Termite Bait Stations are a useful tool for preventing and controlling termite populations and are often placed in areas with heavy termite infestations to quickly control termites.Termite Bait Stations provides real-time monitoring of termite activity, enabling early warning and precise monitoring. It also records and analyzes data, supports remote monitoring, allowing managers to stay informed at any time. Furthermore, it can be used to evaluate the effectiveness of termite control efforts, providing strong support for scientific termite control. It is widely used in water conservancy dams, building construction, ancient building preservation, and landscaping.

2.Termite Bait Stations Features

This system integrates loop technology, autonomous network communication technology, and internet technology, making it a highly sensitive termite monitoring and early warning system.

It changes the traditional monitoring device, which requires purely manual opening of the compartment for inspection. The system now enables automatic termite detection without opening the compartment and uploads the results daily at set times, with the results immediately displayed on the back-end management platform.

The monitoring accuracy rate reaches over 95%.

Each component adopts a modular design, ensuring independent operation while maintaining interoperability, facilitating partial replacement during operation.

The outer shell and internal frame of the monitoring device are made of resin-nylon composite material, and the inductive electronic module is encapsulated to an IP68 rating, exhibiting good corrosion resistance. It is not easily corroded in various soil environments, including humid and acidic conditions, ensuring long-term normal operation of the monitoring device in harsh soil environments.

3.Termite Bait Stations Technical Principles

The system consists of several parts, including a monitoring device housing module, an induction triggering module, a signal acquisition module, an information processing and transmission module, a database, PC-based management software, and a WeChat mini-program.

(1) Housing Module

（2）Inducement trigger module

（3）Information collection module

4.Termite Bait Stations Technical parameters

5.Termite Bait Stations System Architecture

The system employs a combination of loop technology, autonomous network communication technology, and internet technology. It involves embedding a fully automated termite monitoring and early warning device in a suitable location. Built-in precision sensors report real-time status data of the monitoring points, such as no termites, termites present, termite extermination in progress, termite extermination completed, termite relocation, offline status, and termite damage. This data is then transmitted and displayed on terminal operating platforms such as WeChat mini-programs and computer clients.
