Vehicle Weather Station

1.Vehicle Weather Station product introduction

Vehicle Weather Station is an automatic weather station sensor for vehicle installation, providing weather data monitoring for mobile operations.Vehicle Weather Station is a highly integrated, low-power, fast installation and easy to monitor mobile.

It is widely used in meteorology, agriculture and forestry, environmental protection, ocean, airport, port, scientific investigation, campus education and other fields.

The equipment adopts a five-element integrated sensor, which can conduct real-time observation of meteorological elements such as wind speed, wind direction, air temperature, humidity, and atmospheric pressure.The sensor shell is made of imported Stainless steel material, which is more effective in resisting salt spray and other environments, and has a protection level of more than IP65.

It has three built-in 120° wide-angle cameras and is equipped with upper computer software, which can view video images and monitor data in real time on the PC side.

The standard 485-to-USB cable can be connected to a laptop or pad to read data directly.Customers can randomly select a pad according to their own situation.

2.Product features of Vehicle Weather Station

1.The hidden ultrasonic probe on the roof cover can avoid interference from rain and snow accumulation and avoid natural wind shading

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and the wind speed is detected by measuring the relative phase.

3.The bottom of the equipment is equipped with a high-strength magnet (wrapped with rubber), which can be absorbed on the roof without loss.

4.Shock-absorbing suitcase, easy to carry

5.Built-in electronic compass, automatically find North

6.Beidou and GPS dual-mode positioning, with maximum accuracy of 0.1 meters

3.Vehicle Weather Station Technical Parameters

1.Wind speed: Ultrasonic principle, 0~60m/s (±0.1m/s), can measure the real wind speed

2.Wind direction: Ultrasonic principle, 0～360° (±2°)

3.Air temperature: measurement principle diode junction voltage method, -40-60℃ (±0.3℃)

4.Air humidity: measurement principle capacitive type, 0-100%RH (±3%RH)

5.Atmospheric pressure: measurement principle piezoresistive type, 300-1100hpa (±0.25%)

6.Data storage: no less than 500,000 pieces

7.Camera: 3, 120° wide angle, resolution 640*480

8.Power consumption: 3.12W

9.Lithium battery: capacity 12000maH, battery life ≥24h

10.Total weight: ≤5kg

11.Layout time: 1 person, no more than 2 minutes to complete the layout

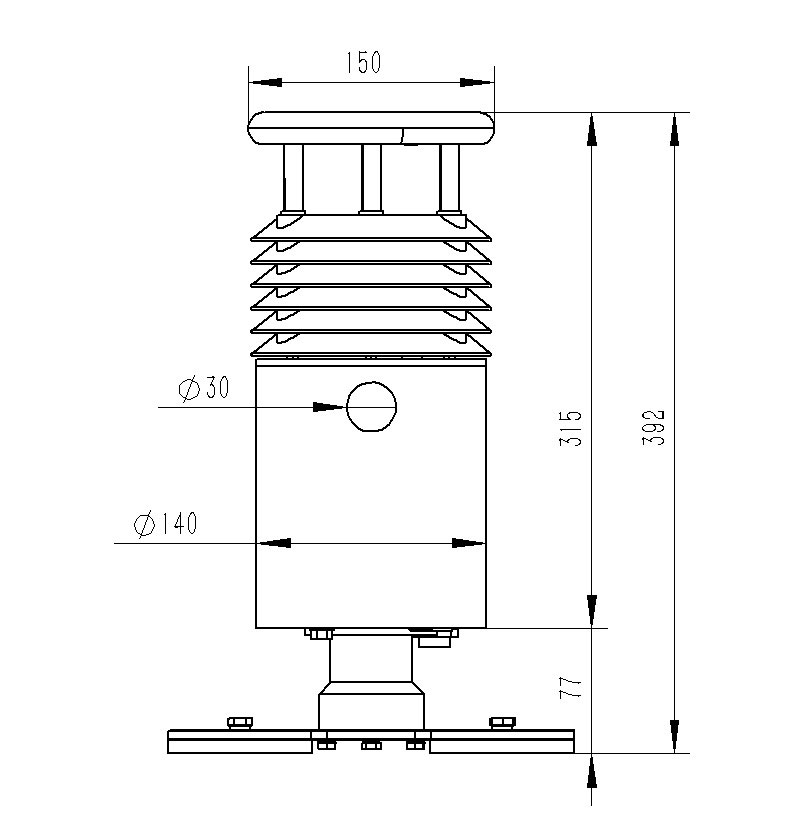

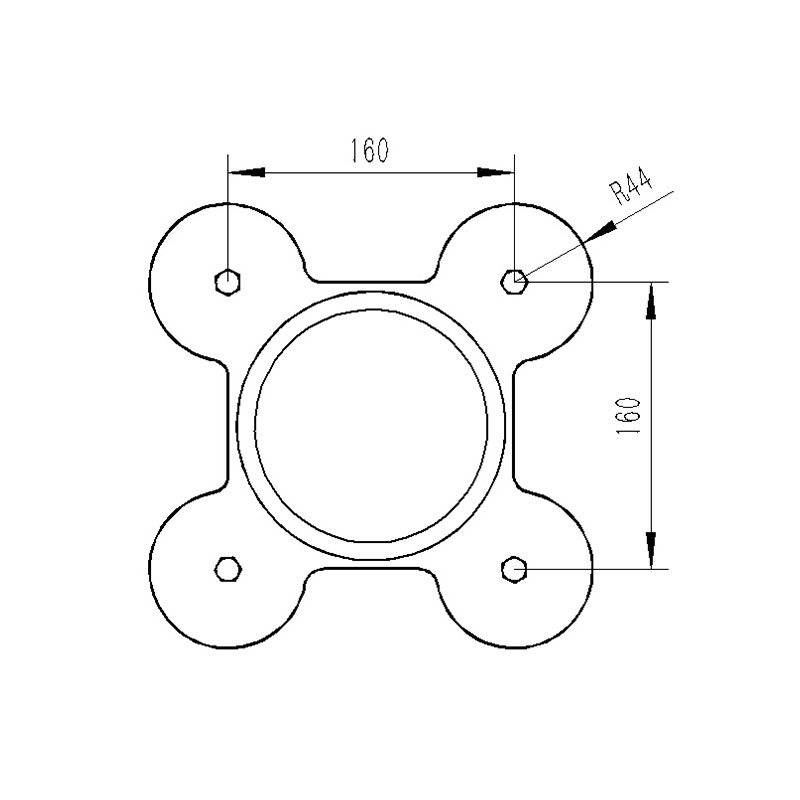

4.Vehicle Weather Station size diagram

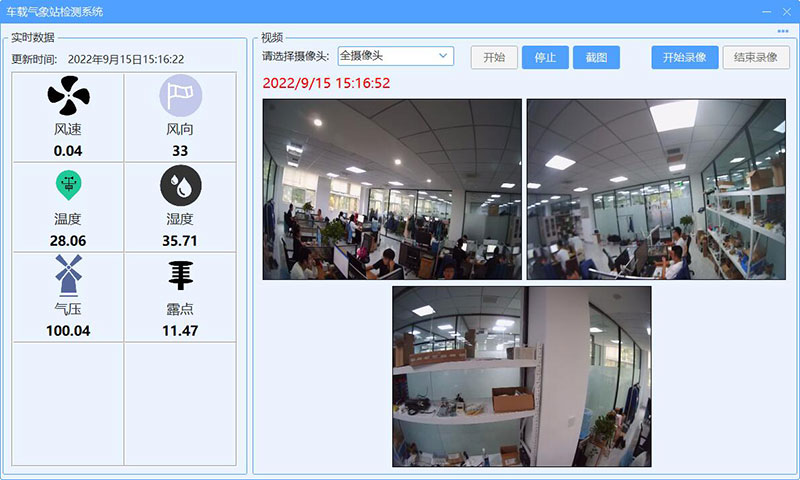

5.Vehicle Weather Station PC interface display

6.Introduction to Vehicle Weather Station's upper computer software

1.Software for receiving, storing, viewing and analyzing PC stand-alone version of data

2.Support serial port data reception, processing and display

3.Support json strings, modbus485 and other communication methods

4.You can set the storage time yourself.You can set the acquisition time yourself in modbus485 acquisition mode

5.Support self-service addition, deletion, and modification of monitoring parameters protocols, names, icons, etc.

6.Support data post-processing function

7.Support external running of javascript scripts
