Model:FT-SN10
Brand:tianqiong

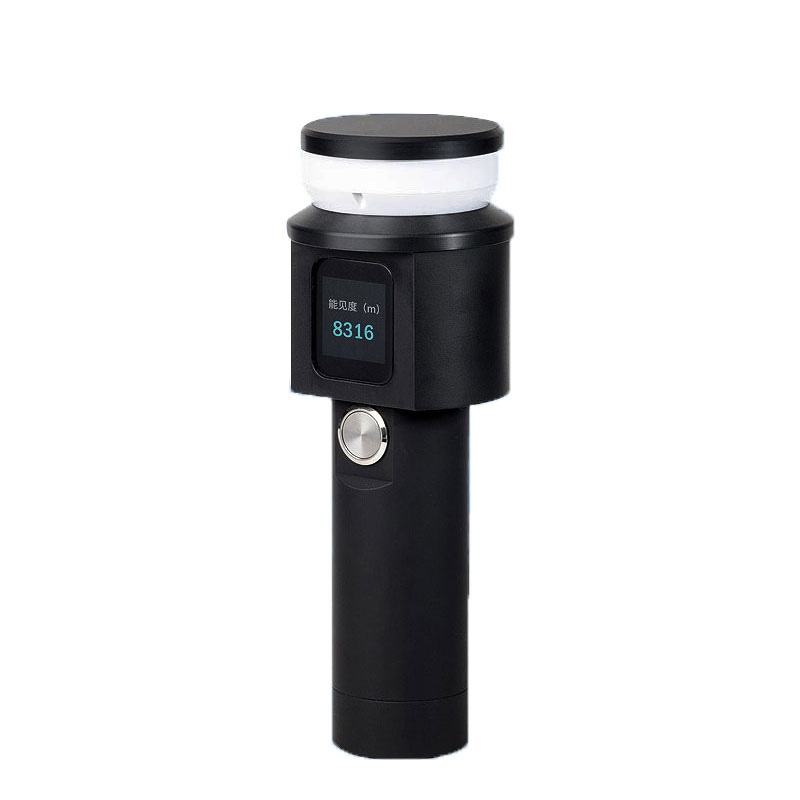

1.Introduction to Handheld visibility detector
handheld visibility detector provides real-time visibility values and the integrated rechargeable lithium battery module ensures continuous working.Handheld visibility detector adopts a unique test method to suck air into a specially designed enclosed air sampling room, which can not only ensure real-time exchange with external air, but also be unaffected by the external space environment.It can also be measured normally in a narrow room.
The handle is made of aluminum alloy, which is sturdy and convenient for users to hold one-handed handles.It can be equipped with 3 rechargeable lithium batteries in the interior to ensure that the visibility instrument can work continuously for more than 72 hours.
It comes with a 2.5-inch touch display screen to display measurement data in real time.Built-in Bluetooth module and dedicated APP software, which receives detection data in real time on mobile phones; data can also be synchronized to the Internet of Things platform for storage or analysis in real time, which is especially suitable for field inspection.
2.Handheld visibility detector product features
1.Visibility can be detected indoors and in any narrow environment;
2.Highly integrated, no calibration and debugging are required, and can be used with power;
3.Built-in rechargeable lithium battery for convenient field inspection;
5.Built-in Bluetooth module, professional APP software and Internet of Things platform;
6.It can be detected while moving by hand or fixedly installed on the tripod;
7.Equipped with a professional instrument box, portable and safe;
3.Technical parameters of Handheld visibility detector
Measurement range | 20-10000m |
Working environment | Temperature: -10~+65℃, humidity: 10~100% |
Data transmission | Bluetooth module; wireless transmission module: mobile 4G DTU (optional) |
Data display | 2.5-inch touch control display screen/mobile app software display; IoT client display interface (optional) |
power supply | Internal rechargeable lithium battery (continuous work greater than 72 hours)/charge adapter |
Size and weight | 230*83mm/less than 0.8kg (excluding tripod) |
In chemical plants, large quantities of flammable, explosive, toxic, and harmful chemicals are typically stored and used, with production processes often conducted under extreme conditions such as high/low temperature, high/low pressure. In such environments, changes in meteorological conditions can...

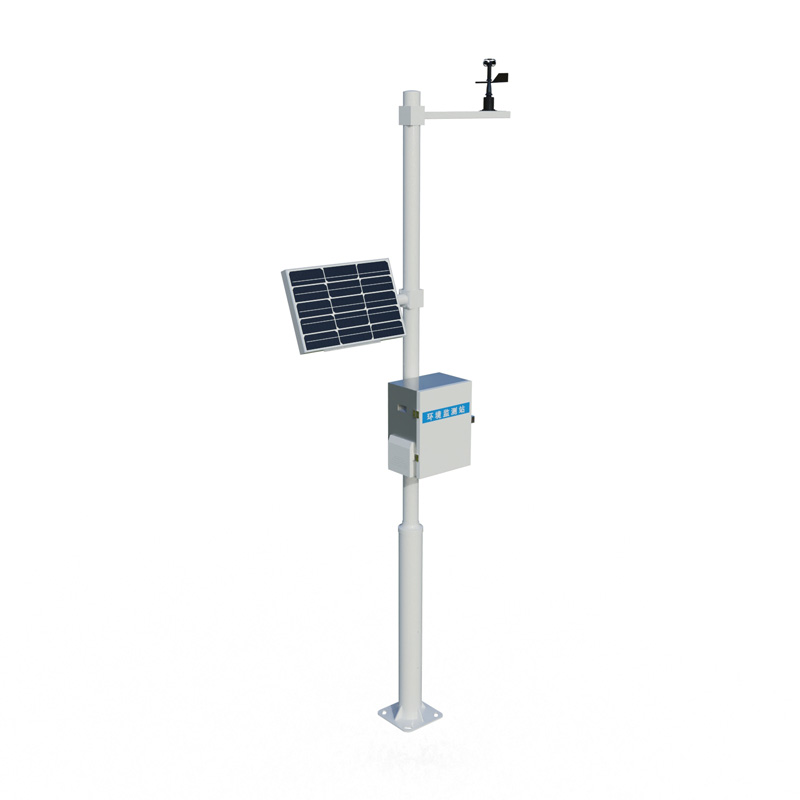

The weather stations used in the agricultural field are called Agricultural Weather Stations. In order to better serve agricultural production, in addition to the conventional meteorological elements, Agricultural Weather Stations will also focus on increasing the monitoring of soil-related elements...
