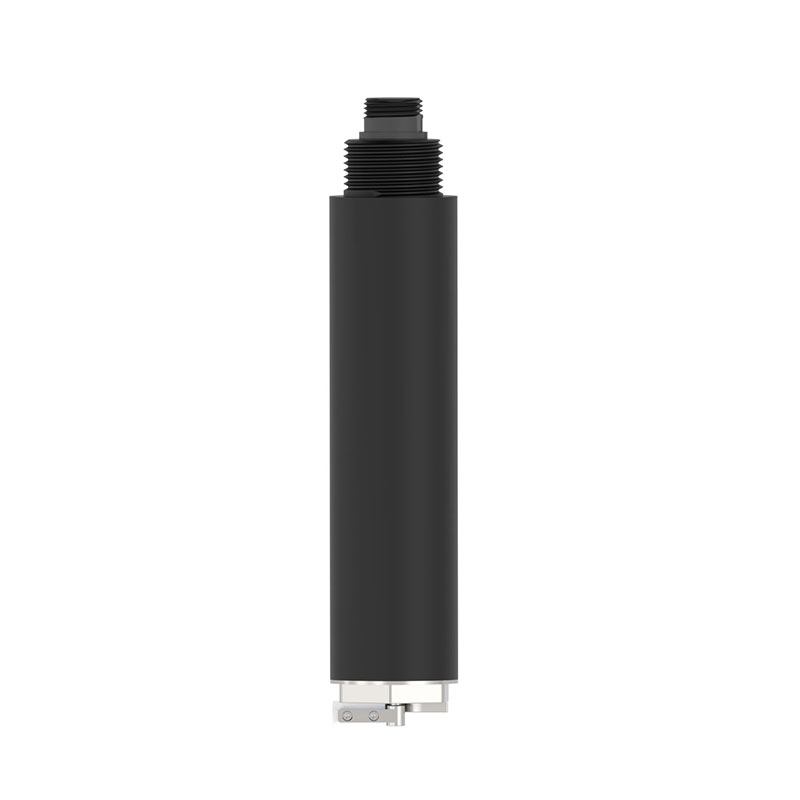

Self-cleaning Turbidity Sensor

one.How Self-cleaning Turbidity Sensor works

Self-cleaning Turbidity Sensor is a self-cleaning sensor used to measure the turbidity of water, which reflects the concentration and distribution of particles in the water.Self-cleaning Turbidity Sensor determines the concentration of particles in the liquid by measuring the scattering of light.It uses a light source to shine into the liquid and then measures the intensity of the scattered light at different angles.This sensor uses 90° angle scattering method to linearly process the acquisition value, and outputs the turbidity value through a temperature compensation algorithm.

two.Self-cleaning Turbidity Sensor Technical Parameters

three.Self-cleaning Turbidity Sensor size/installation

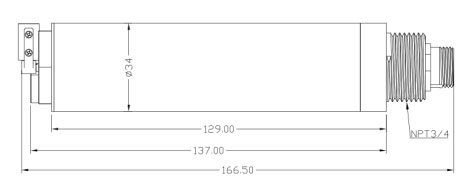

1.Self-cleaning Turbidity Sensor size diagram

2.Wiring diagram

The cable is a 4-core shielded wire:

Red—Power cable blue/black—Ground cable green—485B yellow—485A

Different production batches, the cable colors vary slightly.Please refer to cable silkscreen for details.

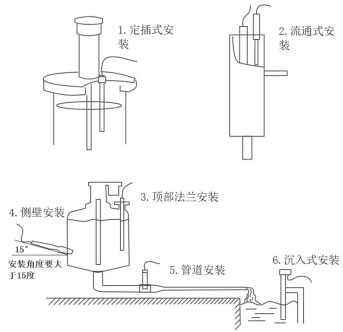

3.Self-cleaning Turbidity Sensor installation

Four.Self-cleaning Turbidity Sensor Maintenance and Maintenance

Sensor maintenance:

If the sensor needs to be cleaned, you can use warm water and an appropriate amount of detergent to clean it.

Notice:

Avoid strong vibration damage to the front of the transparent glass, and do not scratch with hard products.
