Anemometer

1.Introduction to Anemometer Products

Anemometer is a device that measures wind speed and direction, and it is a common instrument used in weather stations.QC2 Anemometer is a highly integrated, low-power, fast installation and easy for field monitoring.

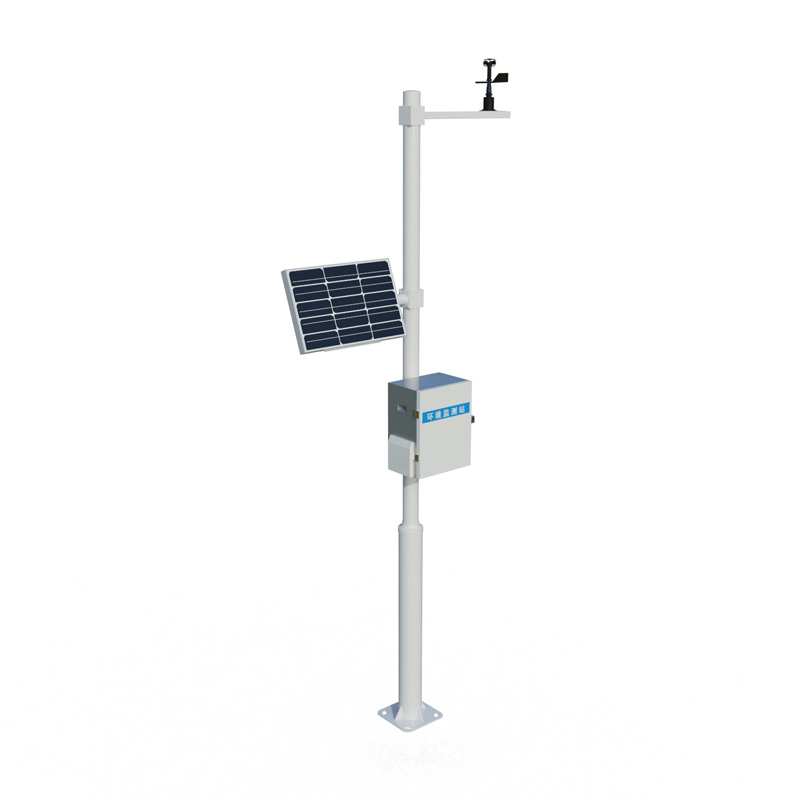

The device consists of five parts: meteorological sensor, collector, solar power supply system, pole support, and cloud platform.It is free of debugging and can be quickly arranged, and is widely used in tower cranes, cableways, ships, meteorological, agriculture, forestry, environmental protection, ocean, airport, port, scientific investigation, campus education and other fields.

2.Anemometer product features

1.Low-power collector: static power consumption is less than 1mA

2.Standard GPRS networking, support extended Bluetooth, and wired transmission

3.7-inch Android touch screen, version: 4.4.2, quad-core Cortex™-A7, 512M/4G (optional)

4.Support modbus485 sensor expansion

5.Solar charging management MPPT automatic power point tracking

6.Three-meter carbon steel bracket, two-section flange connection

7.SMS alarm, send SMS to the specified mobile phone after exceeding the limit

8.Stainless steel material protective box, corrosion-resistant and oxidative-resistant, waterproof grade IP66

3.Anemometer Technical Parameters

1.Collector power supply interface: GX-12-4P, input voltage 8-16V, with RS485 output json data format

2.Sensor modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, device configuration interface: GX-12-4P plug, input voltage 5V

3.Solar power supply and equipped with lead-acid battery, optional 30W 20AH/50W 40AH/100W 100AH.Charging controller: 150W, MPPT automatic power point tracking, efficiency is increased by 20%.

4.Data upload interval: 1 minute-1000 minutes adjustable

5.7-inch Android touch screen, screen size: 1024*600 RGB LCD (optional)

6.Some sensor parameters

7.Obtain the National Meteorological Metering Station Calibration Certificate for the whole machine

8.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification

9.The manufacturer has a computer software registration certificate

10.The manufacturer is a 3A credit enterprise

4.Introduction to Anemometer computer software

1.Software for receiving, storing, viewing and analyzing PC stand-alone version of data

2.Support serial port data reception, processing and display

3.Support json strings, modbus485 and other communication methods

4.You can set the storage time yourself.You can set the acquisition time yourself in modbus485 acquisition mode

5.Support self-service addition, deletion, and modification of monitoring parameters protocols, names, icons, etc.

6.Support data post-processing function

7.Support external running of javascript scripts

5.Introduction to Anemometer Android APP

1.Android stand-alone version of data reception, storage, viewing and analysis software

2.Support Bluetooth data reception

3.The software background reception and processing after the mobile phone is dormant

4.Automatically add the device to json data, modbus device supports scanning code to add the device

5.Support historical data viewing, analysis, and export tables, support curve display and single data point viewing.

6.Support data post-processing function

7.Support external running of javascript scripts

6.Introduction to Anemometer Cloud Platform

1.CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation.

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud server and cloud data storage are stable and reliable, easy to scale, and load balancing.

5.Support SMS alarm and threshold settings

6.Support map display and viewing device information.

7.Support data curve analysis

8.Support data export table form

9.Supports data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
