3D Anemometer

1.3D Anemometer product overview

3D Anemometer is used to collect the horizontal and vertical components of wind speed in 3 dimensions to obtain accurate wind data, which is very suitable for scenarios that require fast response and high resolution.A three-dimensional ultrasonic anemometer is a device that uses ultrasonic waves to measure the flow rate of gas.It calculates the gas flow rate by emitting ultrasound into the gas medium and measuring the propagation rate of ultrasound in the medium.This instrument has the characteristics of non-contact, high precision, real-time, etc., so it has been widely used in the field of meteorological observation.

Specifically, the working principle of a three-dimensional ultrasonic anemeter is based on the difference in the propagation speed of ultrasonic waves in stationary and moving media.When ultrasonic waves propagate in a stationary medium, its speed is relatively stable; while when propagate in a moving medium, the propagation speed of ultrasonic waves will be affected due to the high-speed flow of the medium.By measuring the speed of ultrasonic wave propagation in the medium, we can calculate the flow rate of the gas.

The three-dimensional ultrasonic anemometer shell is made of stainless steel, which can meet the needs of a harsh measurement environment.It also has the characteristics of high measurement accuracy, fast response speed, strong reliability, small size and light weight.It can be widely used in wind speed measurement places in meteorological, environmental protection, energy and other fields.

2.3D Anemometer application scope

Three-dimensional ultrasonic anemometers are widely used in the fields of air quality monitoring, meteorological disaster warning, built environment monitoring and wind energy resource assessment.By accurately measuring wind speed and direction, important data support is provided for scientific research, environmental management and engineering decision-making in related fields.

3.3D Anemometer technical parameters

4.3D Anemometer structural characteristics

Since its launch in the market, this product has won praise from users for its excellent quality and good performance, and has the following characteristics:

The exterior structure is designed reasonably, beautifully and generously, with a moderate size, easy to carry and easy to install.

The stainless steel material enhances the ability to withstand and interference, ensuring the stability of measurement.

Good stability, small size and beautiful appearance.

High measurement accuracy, wide range and good stability.

It has strong corrosion resistance and weather resistance.

Good dynamic characteristics, strong resistance to external interference, and high measurement accuracy.

Low power consumption, long circuit life, and can work stably for a long time;

The power supply has a wide adaptability range, good data and information linearity, and a long signal transmission distance.

5.3D Anemometer structure dimension diagram

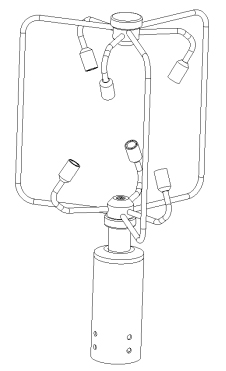

1.Structural diagram

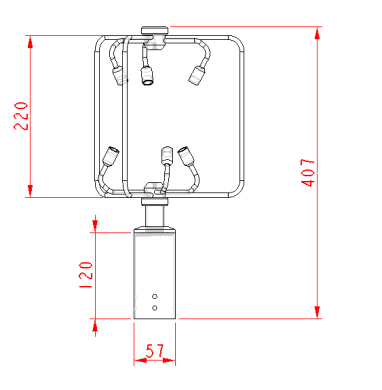

2.Dimensional drawing
