Multiparameter Weather Sensor

1.Introduction to Multiparameter Weather Sensor

Multiparameter Weather Sensor is an accurate and reliable surface weather detection and environmental monitoring system that integrates multiple sensors to monitor the surrounding environment.Shandong Fengtu IoT Technology Co., Ltd., as an enterprise specializing in the research, development, production and sales of micro meteoroscopes, has always been committed to the promotion and application of micro meteoroscopes and meteorological environment solutions.With a complete production chain, strong technical team and comprehensive marketing team, we have developed and produced meteorological products such as ultrasonic wind speed wind meter, five-element micrometeoroscope, six-element micrometeoroscope and small automatic weather station, which have been widely used in In the fields of meteorological monitoring, urban environmental monitoring, wind power generation, navigation and ships, aviation airports, bridges and tunnels, customers are spread all over the country and have achieved good social and economic benefits.

Compared with traditional micro meteoroscopes, our products overcome the demand for high-precision timers and avoid inaccurate measurement problems caused by sensor startup delay, demodulation circuit delay, and temperature changes.

FT-WQX8 type eight-element micrometeoroscope innovatively implements the standard meteorological parameters (wind speed, wind direction, temperature, humidity, air pressure, pm2.5, pm10, noise) through a high-integration structure, which can realize outdoor meteorological parameters 24 Continuous online monitoring for hours, and eight parameters are output to the user at one time through the digital communication interface.The product has a compact structure, beautiful appearance, generous and highly integrated.

2.Multiparameter Weather Sensor product features

1.The hidden ultrasonic probe on the roof cover avoids interference from rain and snow accumulation and avoids natural wind shading (Utility model patent, patent number ZL 2020 2 3215713.X)☆

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5)☆

3.Integrated eight elements of wind speed, wind direction, temperature, humidity, air pressure, pm2.5, pm10, and noise (utilitary patent, patent number ZL 2020 2 3215649.5)☆

4.Adopt advanced sensing technology, real-time measurement, no starting wind speed☆

5.Strong anti-interference ability, with watchdog circuit, automatic reset function, ensuring stable operation of the system

6.High integration, no moving parts, zero wear

7.Maintenance-free, no on-site calibration required

8.Use ASA engineering plastics for outdoor applications without changing color all year round

9.The output signal of the product design is standard as RS485 communication interface (MODBUS protocol); optional 232, USB, and Ethernet interfaces, supporting real-time data reading☆

10.Optional wireless transmission module, minimum transmission interval of 1 minute

11.The probe is snap-on, which solves the problem of inaccurate loose transportation and installation process☆

3.Multiparameter Weather Sensor technical parameters

1.Wind speed: measurement principle ultrasonic wave, 0~60m/s (±0.1m/s) resolution 0.01m/s; (Invention patent, Patent No.ZL 2021 1 0237536.5)

2.Wind direction: measurement principle ultrasonic wave, 0~360° (±2°); resolution: 1°; (Invention patent, patent number ZL 2021 1 0237536.5)

3.Air temperature: measurement principle diode junction voltage method, -40-60℃ (±0.3℃), resolution 0.01℃; (Beijing Meteorological Bureau calibration certificate)

4.Air humidity: measurement principle capacitive type, 0-100%RH (±3%RH), resolution: 0.1%RH; (Calibration certificate of Beijing Meteorological Bureau)

5.Atmospheric pressure: measurement principle piezoresistive type, 300-1100hpa (±0.25%), resolution 0.1hpa; (Calibration certificate of Beijing Meteorological Bureau)

6.PM2.5: 0-1000ug/m3 (±10%)

7.PM10: 0-1000ug/m3 (±10%)

8.Noise: 30-120dB (±1.5dB)

9.Power: 0.72W

10.Bluetooth: Built-in Bluetooth module, which can be connected to Android phones;

11.Wired transmission: 485 to USB, can be directly connected to the computer;

12.Data storage: no less than 500,000 pieces;

13.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification☆

14.The manufacturer has a computer software registration certificate☆

15.The manufacturer is a 3A-level credit enterprise☆

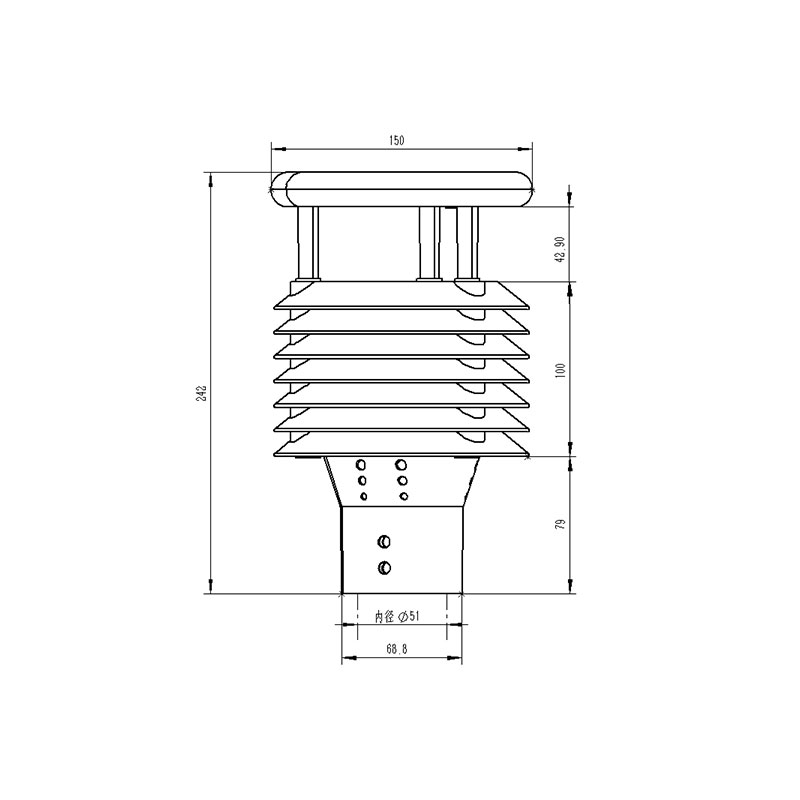

4.Multiparameter Weather Sensor product size diagram

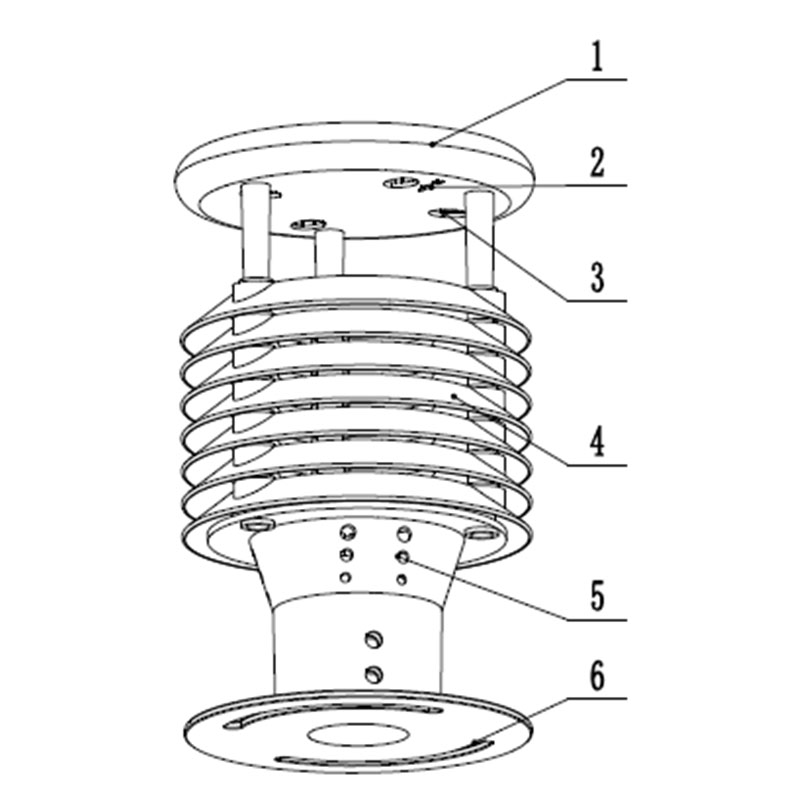

5.Multiparameter Weather Sensor product structure diagram

1.Control circuit

2.Pointing arrow

3.Ultrasonic probe

4.Louver box PM2.5, PM10

5.Temperature, humidity, noise, and air pressure monitoring location

6.Flange conversion head

※This product can be equipped with electronic compass function

6.Multiparameter Weather Sensor product wiring definition
