Comprehensive Environmental Monitoring with FT-FZ1 Negative oxygen ion monitoring station

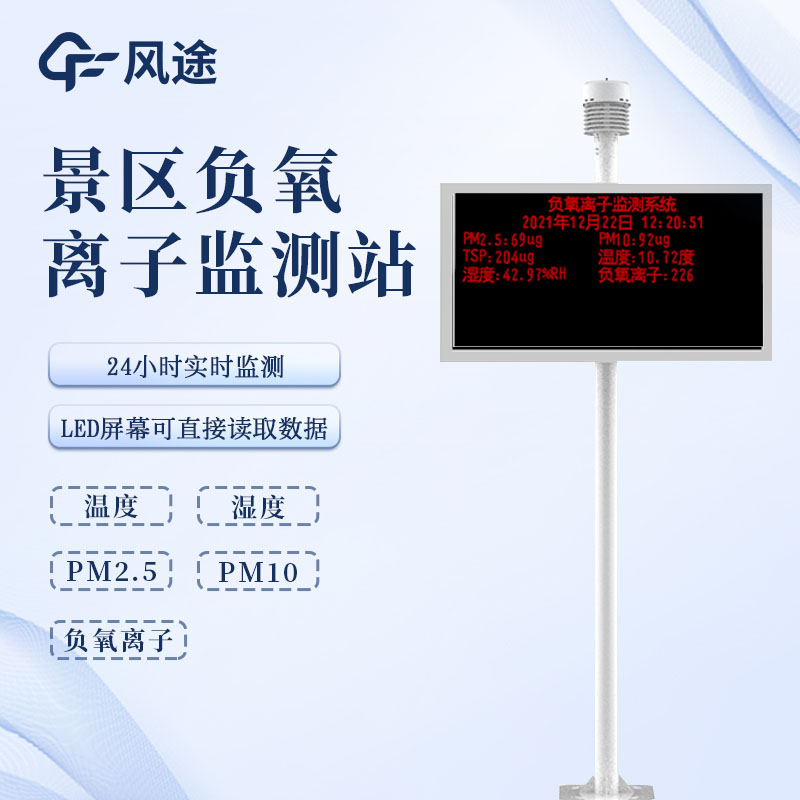

Negative Oxygen Ion Monitoring Station FT-FZ1 is an environmental monitoring device used to measure and display the concentration of negative oxygen ions in the air.

The function of FT-FZ1 is to automatically monitor the concentration of negative oxygen ions in the air around the clock. Negative oxygen ions are negatively charged oxygen molecules or oxygen clusters, and their concentration is one of the important indicators for measuring air cleanliness and environmental quality.

In addition to core negative oxygen ion monitoring, the device can also flexibly expand to monitor multiple meteorological and environmental factors according to user needs, mainly including:Air temperature and air humidityPM2.5 and PM10 particulate matter concentrations

Negative oxygen ion monitoring adopts the "cylindrical electrode suction" measurement principle. The measurement range covers 0 to 100,000 per cubic centimeter, with an accuracy error within ±10%.

For other parameter monitoring, the measurement principles and accuracies of extended items such as temperature, humidity, PM2.5, and PM10 vary to meet the accuracy requirements of multi-parameter monitoring.

FT-FZ1 provides diversified data display and transmission solutions to facilitate users to obtain information in real-time.

On-site display: The device is equipped with an LED display screen, enabling direct reading of real-time data at the installation site.

Remote access: Monitoring data can be transmitted to the cloud platform through various network methods such as GPRS, 4G, or optical fiber. Users can subsequently view real-time and historical data remotely through mobile APP, PC web browser, or WeChat official account.

Data management: The cloud platform supports data curve analysis, table export and other functions, and the device itself can also store up to one year of original monitoring data.

The sensor adopts a modular design and can be replaced individually, facilitating later operation and maintenance. The system has a high degree of integration and supports sensor expansion. 485 interface and Modbus protocol sensors can be used directly. It has been applied in thousands of parks and scenic spots, with stable system operation and low failure rate.
