Ultrasonic Wind Speed & Direction Sensor

1.Ultrasonic Wind Speed & Direction Sensor Product Introduction

Ultrasonic Wind Speed & Direction Sensor provides accurate, reliable wind speed and direction data that can be logged via a free app.Shandong Fengtu IoT Technology Co., Ltd., as an enterprise specializing in the research, development, production and sales of micro meteoroscopes, has always been committed to the promotion and application of micro meteoroscopes and meteorological environment solutions.With a complete production chain, strong technical team and comprehensive marketing team, we have developed and produced meteorological products such as ultrasonic wind speed wind meter, five-element micrometeoroscope, six-element micrometeoroscope and small automatic weather station, which have been widely used in In the fields of meteorological monitoring, urban environmental monitoring, wind power generation, navigation and ships, aviation airports, bridges and tunnels, customers are spread all over the country and have achieved good social and economic benefits.

Compared with traditional micro meteoroscopes, our products overcome the demand for high-precision timers and avoid inaccurate measurement problems caused by sensor startup delay, demodulation circuit delay, and temperature changes.

The FT-WQX2S ultrasonic wind speed wind direction instrument innovatively realizes wind speed and wind direction through a high-integration structure, which can realize 24-hour continuous online monitoring of outdoor meteorological parameters, and output 2-digit parameters to users at one time through the digital communication interface.

It can be widely used in urban environmental monitoring, wind power generation, meteorological monitoring, bridges and tunnels, nautical ships, aviation airports and other fields, without any calibration required on-site maintenance.

2.Ultrasonic Wind Speed & Direction Sensor product features

1.The hidden ultrasonic probe on the roof cover avoids interference from rain and snow accumulation and avoids natural wind shading (Utility model patent, patent number ZL 2020 2 3215713.X)☆

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5)☆

3.Integrated elements of wind speed and wind direction (utilitary patent, patent number ZL 2020 2 3215649.5)☆

4.Adopt advanced sensing technology, real-time measurement, no starting wind speed☆

5.Strong anti-interference ability, with watchdog circuit, automatic reset function, ensuring stable operation of the system

6.High integration, no moving parts, zero wear

7.Maintenance-free, no on-site calibration required

8.Made of stainless steel, high strength, oxidation and corrosion resistance

9.The output signal of the product design is standard as RS485 communication interface (MODBUS protocol); optional 232, USB, and Ethernet interfaces, supporting real-time data reading☆

10.Optional external wireless transmission module, with a minimum transmission interval of 1 minute

11.Optional built-in heating module: heating current 1A (DC12V), heating power consumption 12-15W

12.Integrated design has low wear, long service life and fast response speed

3.Ultrasonic Wind Speed & Direction Sensor Technical Parameters

1.Wind speed: measurement principle ultrasonic wave, 0~60m/s (±0.1m/s) resolution 0.01m/s; (Invention patent, Patent No.ZL 2021 1 0237536.5)

2.Wind direction: measurement principle ultrasonic wave, 0~360° (±2°); resolution: 1°; (Invention patent, patent number ZL 2021 1 0237536.5)

3.Power: 0.6W

4.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification☆

5.The manufacturer has a computer software registration certificate☆

6.The manufacturer is a 3A-level credit enterprise☆

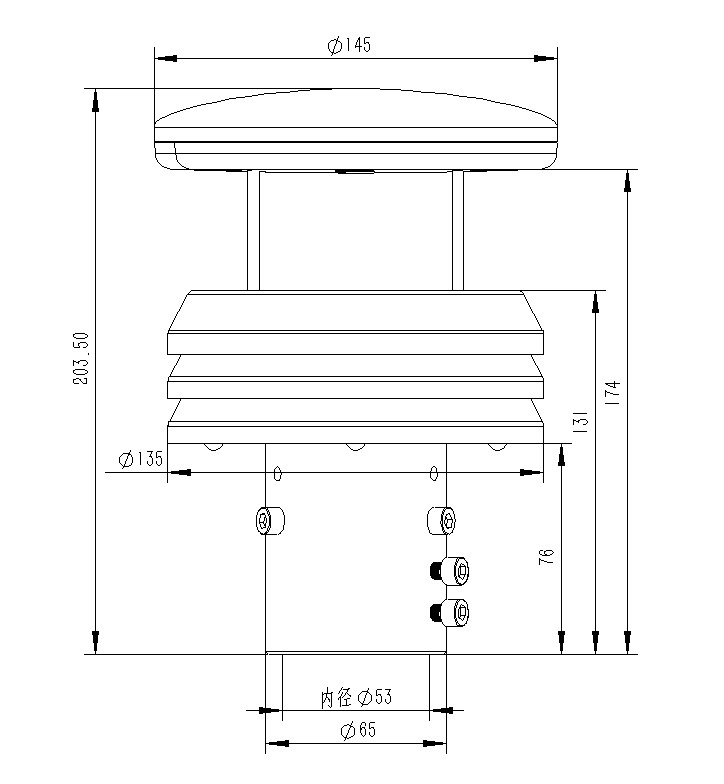

4.Ultrasonic Wind Speed & Direction Sensor Product Size Diagram

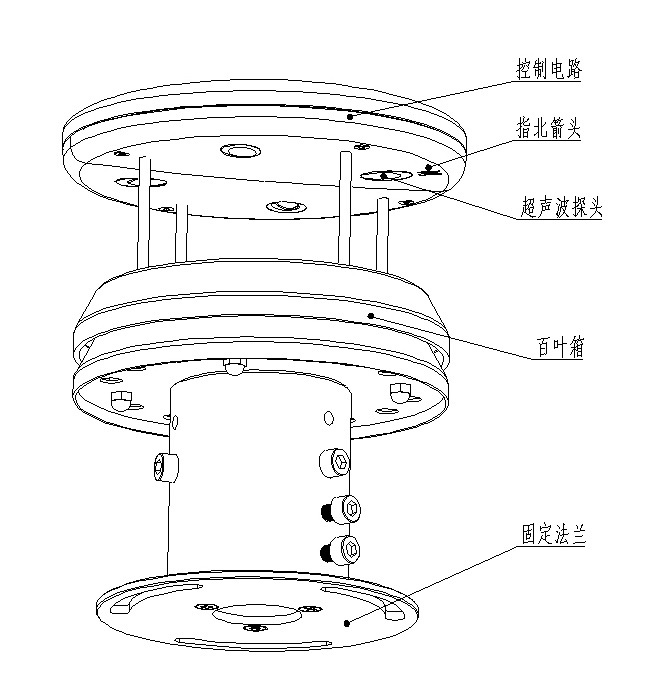

5.Ultrasonic Wind Speed & Direction Sensor product structure diagram

6.Ultrasonic Wind Speed & Direction Sensor Product Wiring Definition
