what is meteorological parameters

1.What is meteorological parameters Product introduction

What are meteorological parameters? The key parameters include ambient temperature, temperature, precipitation, and wind speed, which are used to describe and quantify atmospheric variables.Shandong Fengtu IoT Technology Co., Ltd., as an enterprise specializing in the research, development, production and sales of micro meteoroscopes, has always been committed to the promotion and application of micro meteoroscopes and meteorological environment solutions.With a complete production chain, strong technical team and comprehensive marketing team, we have developed and produced meteorological products such as ultrasonic wind speed wind meter, five-element micrometeoroscope, six-element micrometeoroscope and small automatic weather station, which have been widely used in In the fields of meteorological monitoring, urban environmental monitoring, wind power generation, navigation and ships, aviation airports, bridges and tunnels, customers are spread all over the country and have achieved good social and economic benefits.

Compared with traditional micro meteoroscopes, our products overcome the demand for high-precision timers and avoid inaccurate measurement problems caused by sensor startup delay, demodulation circuit delay, and temperature changes.

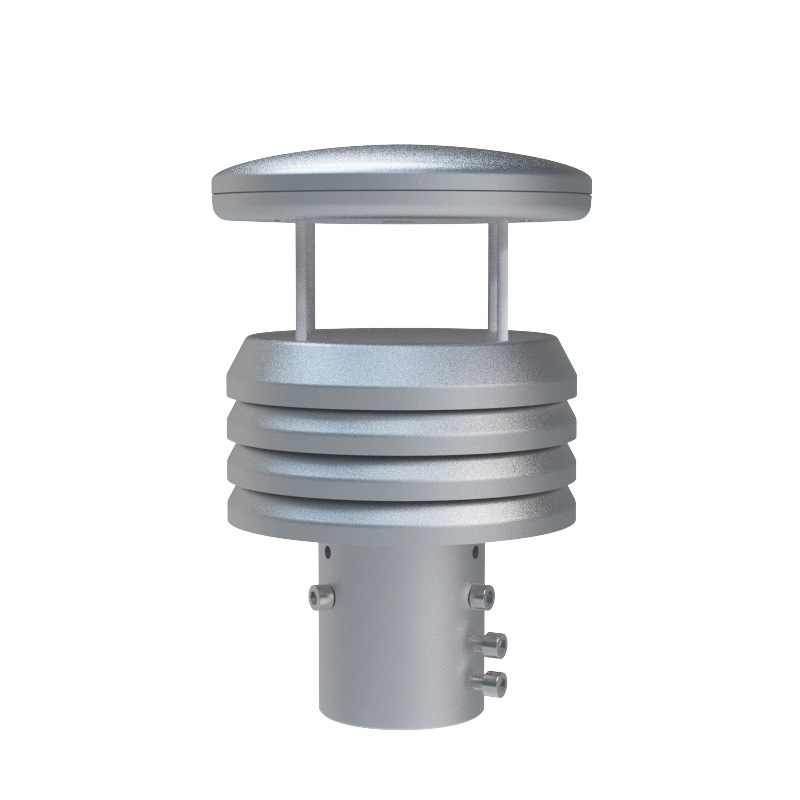

FT-WQX5S five-element micrometeoroscope innovatively realizes wind speed, wind direction, temperature, humidity and atmospheric pressure through a high-integration structure, which can realize 24-hour continuous online monitoring of outdoor meteorological parameters, and will use the digital communication interface to carry out the five-dimensional network monitoring.The item parameters are output to the user at one time.

2.What is meteorological parameters product features

1.The hidden ultrasonic probe on the roof cover avoids interference from rain and snow accumulation and avoids natural wind shading (Utility model patent, patent number ZL 2020 2 3215713.X)☆

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5)☆

3.Five elements of wind speed, wind direction, temperature, humidity, and atmospheric pressure (utilitary patent, patent number ZL 2020 2 3215649.5)☆

4.Adopt advanced sensing technology, real-time measurement, no starting wind speed☆

5.Strong anti-interference ability, with watchdog circuit, automatic reset function, ensuring stable operation of the system

6.High integration, no moving parts, zero wear

7.Maintenance-free, no on-site calibration required

8.Made of stainless steel, high strength, oxidation and corrosion resistance

9.The output signal of the product design is standard as RS485 communication interface (MODBUS protocol); optional 232, USB, and Ethernet interfaces, supporting real-time data reading☆

10.Optional external wireless transmission module, with a minimum transmission interval of 1 minute

11.Optional built-in heating module: heating current 1A (DC12V), heating power consumption 12-15W

12.Integrated design has low wear, long service life and fast response speed

3.What is meteorological parameters technical parameters

1.Wind speed: measurement principle ultrasonic wave, 0~60m/s (±0.1m/s) resolution 0.01m/s; (Invention patent, Patent No.ZL 2021 1 0237536.5)

2.Wind direction: measurement principle ultrasonic wave, 0~360° (±2°); resolution: 1°; (Invention patent, patent number ZL 2021 1 0237536.5)

3.Air temperature: measurement principle diode junction voltage method, -40-60℃ (±0.3℃), resolution 0.01℃; (Beijing Meteorological Bureau calibration certificate)

4.Air humidity: measurement principle capacitive type, 0-100%RH (±3%RH), resolution: 0.1%RH; (Calibration certificate of Beijing Meteorological Bureau)

5.Atmospheric pressure: measurement principle piezoresistive type, 300-1100hpa (±0.25%), resolution 0.1hpa; (Calibration certificate of Beijing Meteorological Bureau)

6.Power: 0.72W

7.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification☆

8.The manufacturer has a computer software registration certificate☆

9.The manufacturer is a 3A-level credit enterprise☆

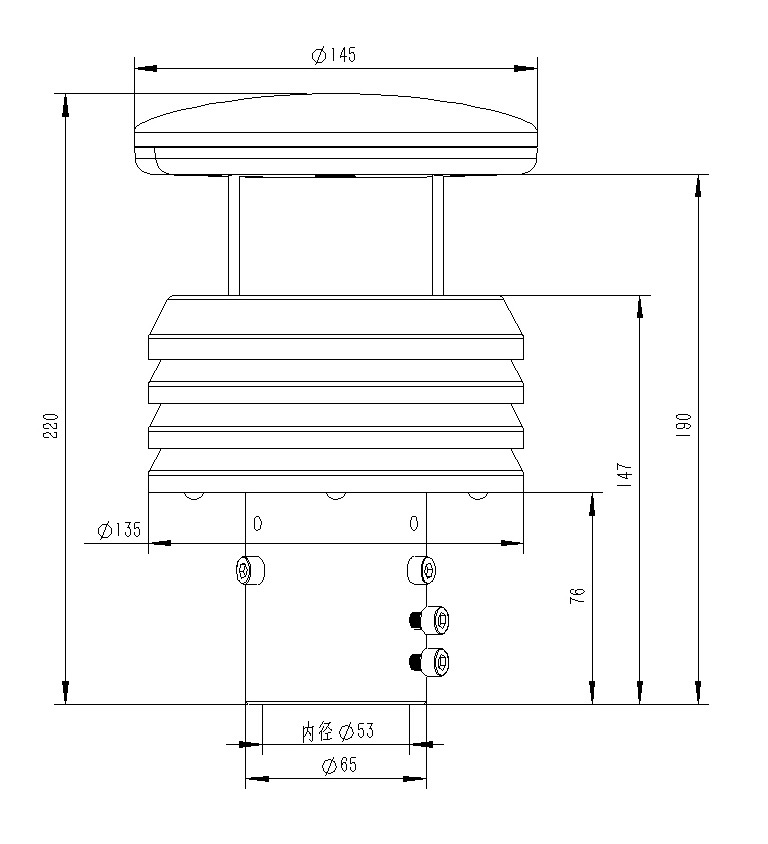

4.What is meteorological parameters product size diagram

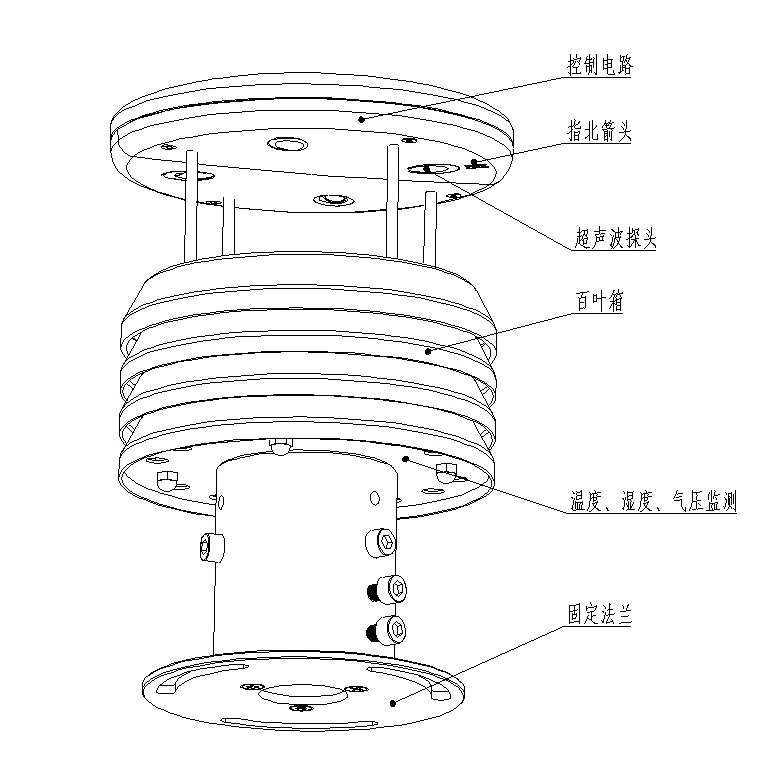

5.What is meteorological parameters product structure diagram

6.What is meteorological parameters product wiring definition
