sensors for climatic parameters

1.Introduction to sensors for climatic parameters

sensors for climatic parameters are all-in-one meteorological sensors that combine all typical weather parameters into a compact and rugged design.Shandong Fengtu IoT Technology Co., Ltd., as an enterprise specializing in the research, development, production and sales of micro meteoroscopes, has always been committed to the promotion and application of micro meteoroscopes and meteorological environment solutions.With a complete production chain, strong technical team and comprehensive marketing team, we have developed and produced meteorological products such as ultrasonic wind speed wind meter, five-element micrometeoroscope, six-element micrometeoroscope and small automatic weather station, which have been widely used in In the fields of meteorological monitoring, urban environmental monitoring, wind power generation, navigation and ships, aviation airports, bridges and tunnels, customers are spread all over the country and have achieved good social and economic benefits.

Compared with traditional micro meteoroscopes, our products overcome the demand for high-precision timers and avoid inaccurate measurement problems caused by sensor startup delay, demodulation circuit delay, and temperature changes.

sensors for climate parameters, also known as air pollution environmental monitoring instrument, is a six pollutant parameters developed by Shandong Fengtu Internet of Things Technology Co., Ltd.for the current increasingly severe environmental protection form.It also has a high-integration instrument that monitors air temperature, air humidity, wind speed, wind direction, atmospheric pressure and optical rainfall.The function is mainly to monitor conventional pollution factors and meteorological auxiliary parameters in the air for 24 hours continuously online, and provide the analyzed data to the Environmental Protection Bureau as a reference for air quality and assist in environmental protection decisions.In addition, hydrogen sulfide, volatile organic pollutants, sunlight radiation, noise, etc.can be optionally equipped.

sensors for climate parameters can be used for urban grid environmental monitoring and control, smart street lights, scenic area environmental monitoring, factories or mines, construction sites (construction site dust monitoring), urban roads, highways, public places and other places involving air quality monitoring..

2.Sensors for climatic parameters product features

1.The hidden ultrasonic probe on the top cover avoids interference from rain and snow accumulation and avoids natural wind shading (Utility model patent, patent number ZL 2020 2 3215713.X)☆

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5)☆

3.PM2.5, PM10, CO, SO2, NO2, O3, temperature, humidity, wind speed, wind direction, atmospheric pressure, and optical rainfall twelve elements integrated (utilitary patent, patent number ZL 2020 2 3215649.5)☆

4.Adopt advanced sensing technology, real-time measurement, no starting wind speed☆

5.Strong anti-interference ability, with watchdog circuit, automatic reset function, ensuring stable operation of the system

6.High integration, no moving parts, zero wear

7.Maintenance-free, no on-site calibration required

8.Use ASA engineering plastics for outdoor applications without changing color all year round

9.The output signal of the product design is standard as RS485 communication interface (MODBUS protocol); optional 232, USB, and Ethernet interfaces, supporting real-time data reading☆

10.Optional wireless transmission module, minimum transmission interval of 1 minute

11.The probe is designed with snap-on type, which solves the problem of inaccurate loose transportation and installation process☆

3.Sensors for climatic parameters technical parameters

1.Wind speed: measurement principle ultrasonic wave, 0~60m/s (±0.1m/s) resolution 0.01m/s; (Invention patent, Patent No.ZL 2021 1 0237536.5)

2.Wind direction: measurement principle ultrasonic wave, 0~360° (±2°); resolution: 1°; (Invention patent, patent number ZL 2021 1 0237536.5)

3.Air temperature: measurement principle diode junction voltage method, -40-60℃ (±0.3℃), resolution 0.01℃; (Calibration certificate of Beijing Meteorological Bureau)

4.Air humidity: measurement principle capacitive type, 0-100%RH (±3%RH), resolution: 0.1%RH; (Calibration certificate of Beijing Meteorological Bureau)

5.Atmospheric pressure: measurement principle piezoresistive type, 300-1100hpa (±0.25%), resolution 0.1hpa; (Calibration certificate of Beijing Meteorological Bureau)

6.PM2.5: 0-1000ug/m3 (±10%)

7.PM10: 0-1000ug/m3 (±10%)

8.Optical rainfall: 0-4mm/min (≤±4%) (Invention patent, Patent number ZL 2022 1 1306149.3)

9.Carbon monoxide: 0-1000ppm (±2PPM)

10.Sulphur dioxide: 0-20PPM (±1PPM)

11.Nitrogen dioxide: 0-20PPM (±1PPM)

12.Ozone: 0-20PPM (±1PPM)

13.Power: 0.84W

14.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification☆

15.The manufacturer has a computer software registration certificate☆

16.The manufacturer is a 3A-level credit enterprise☆

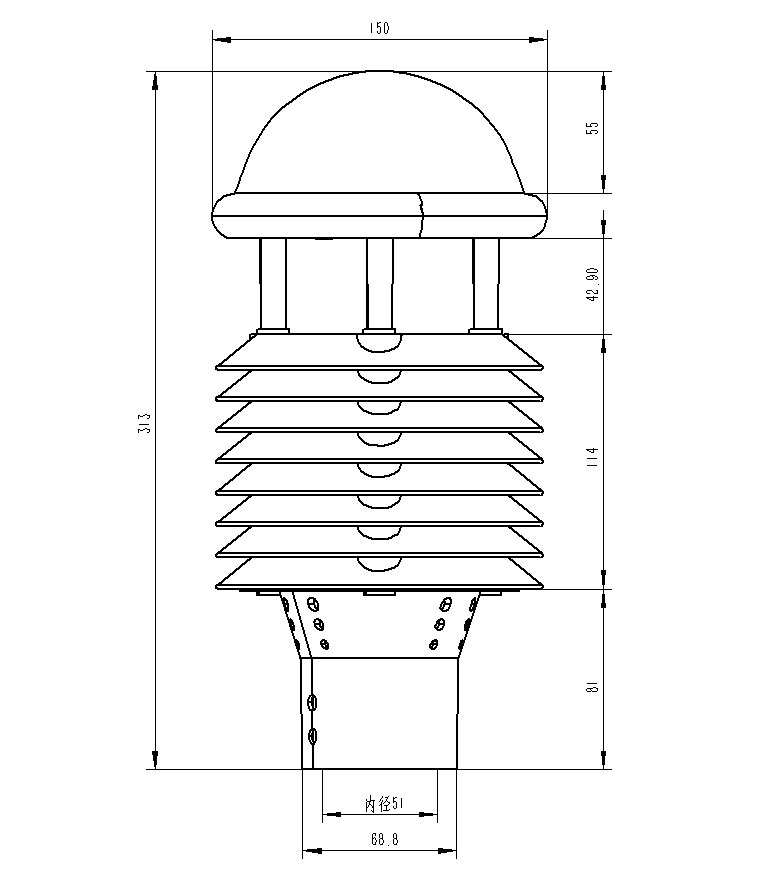

4.sensors for climatic parameters product size diagram

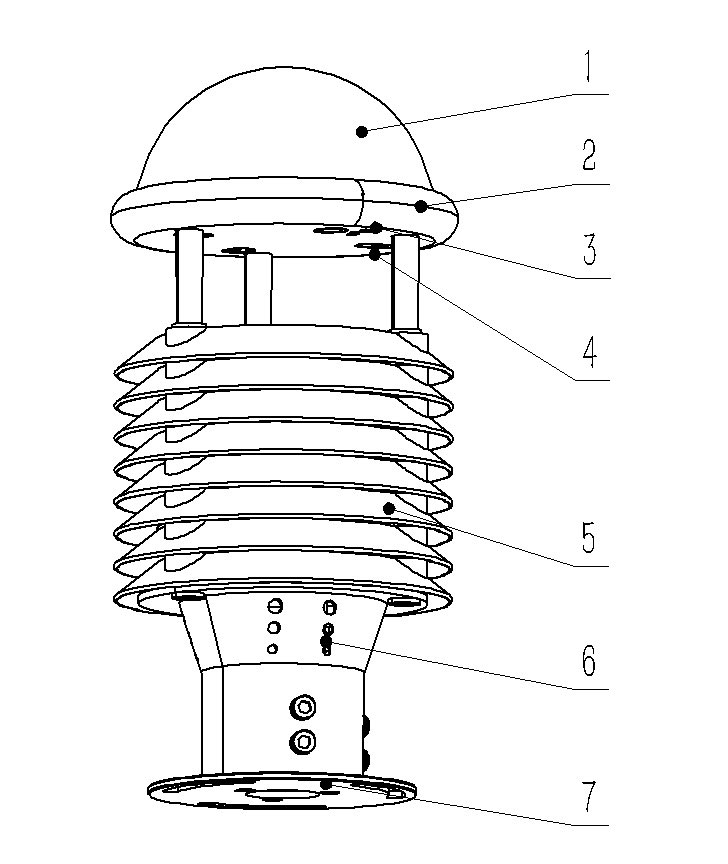

5.sensors for climatic parameters product structure diagram

1.Optical rain sensor

2.Control circuit

3.Pointing to the north arrow

4.Ultrasonic wind speed and direction

5.Louvered box PM2.5, PM10, carbon monoxide, sulfur dioxide, nitrogen dioxide, ozone

6.Temperature, humidity, and air pressure monitoring location

7.Bottom fixing flange

6.sensors for climatic parameters product wiring definition
