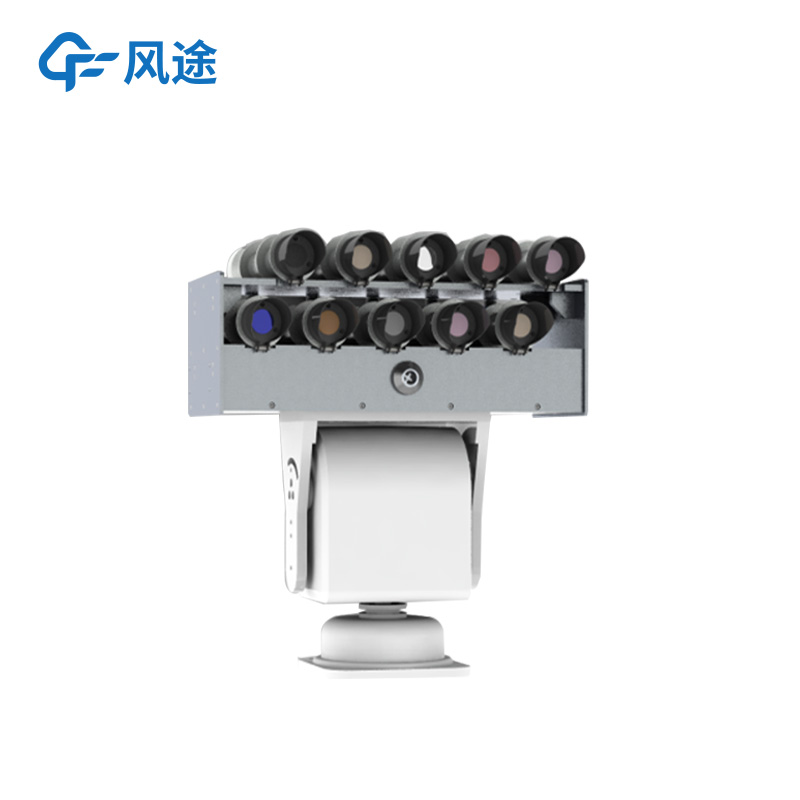

Fully Automatic Solar Spectrometer: Precision at Sun's Service

In the fields of solar energy resource assessment and meteorological monitoring, the Fully Automatic Solar Spectrometer is revolutionizing traditional measurement methods. This instrument combines multi - spectral filters with thermopiles to capture radiant energy within the spectral range of 280 to 3000 nanometers, with a minimum bandwidth of 2 nanometers. It can measure basic data such as total radiation and diffuse radiation, and also conduct special analysis for special wavebands such as ultraviolet radiation and photosynthetically active radiation, providing support for the efficiency optimization of photovoltaic power plants and the study of atmospheric composition.

The built - in global adaptive solar tracker is a core component. Driven by a stepper motor, it can accurately point within the range of 60 degrees north and south latitude. Whether it is active tracking or passive calculation, this system can operate stably in extreme environments ranging from - 40°C to 60°C. With an angular velocity of up to 4.5 degrees per second and a torque output of 12 Nm, it can stably track even in the face of sudden weather changes.

The instrument is equipped with a 32 - bit processor, high - precision GPS, and multi - mode communication chips. Through technologies such as Bluetooth and 4G, on - site personnel can synchronize data to mobile phones or PDAs in real - time, while the cloud platform can conduct intelligent early - warning analysis. Its self - calibration technology automatically corrects data deviations through intelligent algorithms, ensuring that the accuracy of radiation measurement is always better than 2%.

The dual - power supply mode supports intelligent switching between AC220V and DC12V, and the internal green power module enables efficient energy management. The newly optimized integrated observation bracket weighs only 6 kilograms and can be quickly installed by a single person. Its compact body is more flexible in field deployment.

From photovoltaic power plants to meteorological research stations, from agricultural ecological monitoring to smart city planning, the more than 20 parameters output by this system provide a decision - making basis for various fields. With the acceleration of the global energy transition, this Fully Automatic Solar Spectrometer, which integrates high - precision measurement, intelligent operation and maintenance, and environmental adaptability, will play an important role in the development of clean energy.
