UAV Visibility Meter: Design, Principle, Characteristics and Applications

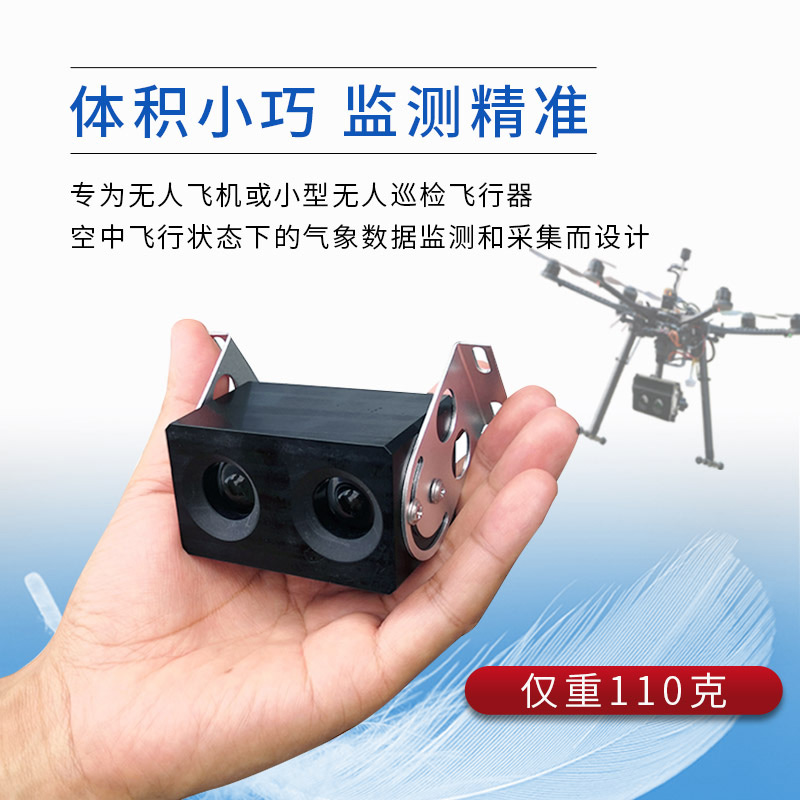

The UAV visibility meter is designed with full consideration of the requirements for UAV mounting. It features a lightweight and compact design, enabling it to be easily adapted to various small UAV platforms and reducing the burden on the UAV during flight. At the same time, the flat body design can effectively reduce wind resistance when hoisted under the UAV's belly, ensuring flight stability and endurance. This design also has anti-electromagnetic interference and dust-proof functions.

This type of detector mainly uses forward scattering technology to monitor atmospheric visibility. Its working principle is that the instrument emits light beams of a specific wavelength and then detects the scattering of these beams after they propagate in the air. Particles in the atmosphere can scatter light. By analyzing parameters such as the intensity of the scattered light, the concentration of particles in the atmosphere can be measured, and the visibility can be inferred. When the number of particles such as haze and sand in the air increases, the degree of light scattering increases. The detector can timely monitor this change and calculate the current visibility value to provide data for users.

In terms of technical characteristics, the detection range of the UAV visibility meter can meet the needs of visibility monitoring in different scenarios, the measurement accuracy meets the practical application standards, the light source selection is suitable for detection needs, and the response speed can timely respond to environmental changes. The device can work normally in harsh environments with large temperature and humidity changes. Its low-power consumption feature is suitable for the UAV's flight control system.

In the field of meteorological observation, the UAV visibility meter can go deep into remote areas to obtain real-time visibility data at different heights, providing more comprehensive parameters for weather forecasting. When used in airports, it can monitor runway visibility in real-time to ensure the safety of aircraft take-offs and landings; when used in expressways, it can realize visibility early warning under severe weather conditions. It can assist rescuers in planning routes during emergency rescue and monitor the atmospheric visibility of specific areas in the field of ecological environmental protection.
