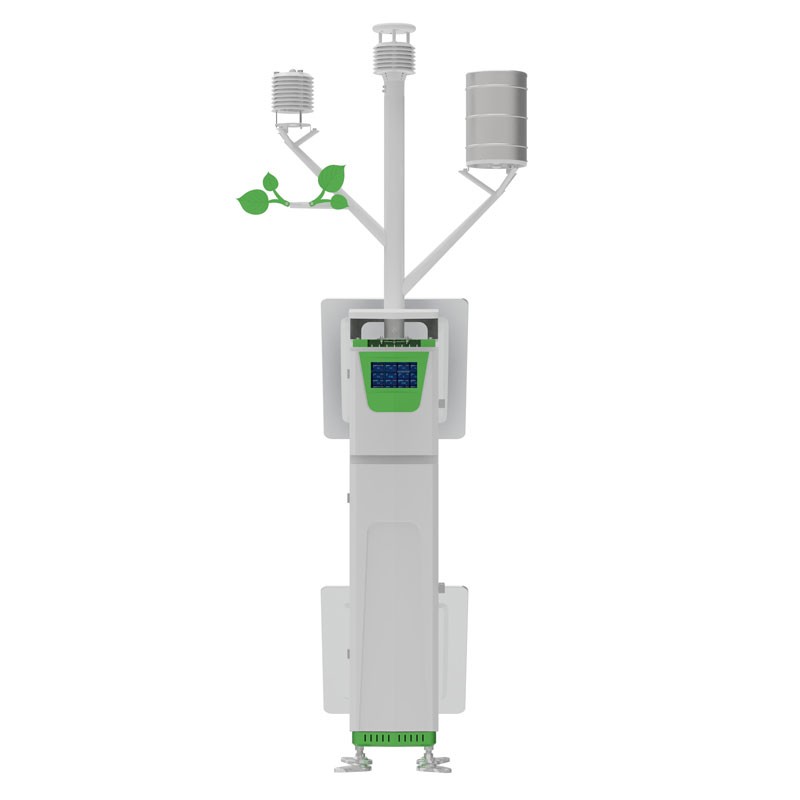

Environmental Monitoring Meteorological Station

1、Environmental Monitoring Meteorological Station Product Introduction

Environmental Monitoring Meteorological Station provides a simple and compact method for monitoring microenvironments, such as accurate data on parameters like temperature, humidity, air pressure, precipitation, and wind speed.Environmental Monitoring Meteorological Station is a highly integrated meteorological data monitoring system. The system integrates data acquisition, storage, and transmission, and is developed and manufactured according to international WMO meteorological standards. It can simultaneously monitor ultrasonic wind speed, wind direction, air temperature, air humidity, atmospheric pressure, rainfall, sunlight, carbon dioxide, PM2.5, PM10, and noise.

Environmental Monitoring Meteorological Station consists of three parts: monitoring sensors, a data acquisition unit, and an environmental monitoring cloud server. The system adopts a modular design, allowing for flexible addition or removal of modules and sensors according to user needs. The system has a built-in large-capacity FLASH storage chip that can store more than one year's worth of meteorological data. It is equipped with a Chinese character LCD screen for real-time observation of current meteorological information. When connected to a computer, data can be viewed item by item and exported to Excel for editing.

2、Environmental Monitoring Meteorological Station Product Advantages

Advanced technology, high measurement accuracy

Large data capacity, long storage time

Long telemetry distance, stable communication

User-friendly interface, easy operation

High reliability, low maintenance cost

3、Environmental Monitoring Meteorological Station Product Positioning

Environmental Monitoring Meteorological Station supports wireless transmission, requires no debugging, can be quickly deployed, and is widely used in the following fields:

Meteorological, agricultural, forestry, and marine environmental monitoring

Airports, ports, and transportation

Geological exploration and university research

4、Environmental Monitoring Meteorological Station Features and Functions

Low-power data logger: Power consumption less than 50mA

GPRS connectivity: Supports 4G across three networks

Supports expanded sensors

7-inch LCD screen display

Supports data storage

Expandable USB flash drive data export

Supports Modbus-RTU-RS485 sensor expansion

Solar charging management: MPPT automatic power point tracking

Equipped with 100W/40Ah solar power supply

Supports IoT data display, storage, and analysis platform

Platform supports multiple protocol data forwarding, including HJ-212, TCP short connections, and HTTP.

5、Environmental Monitoring Meteorological Station Technical parameters
