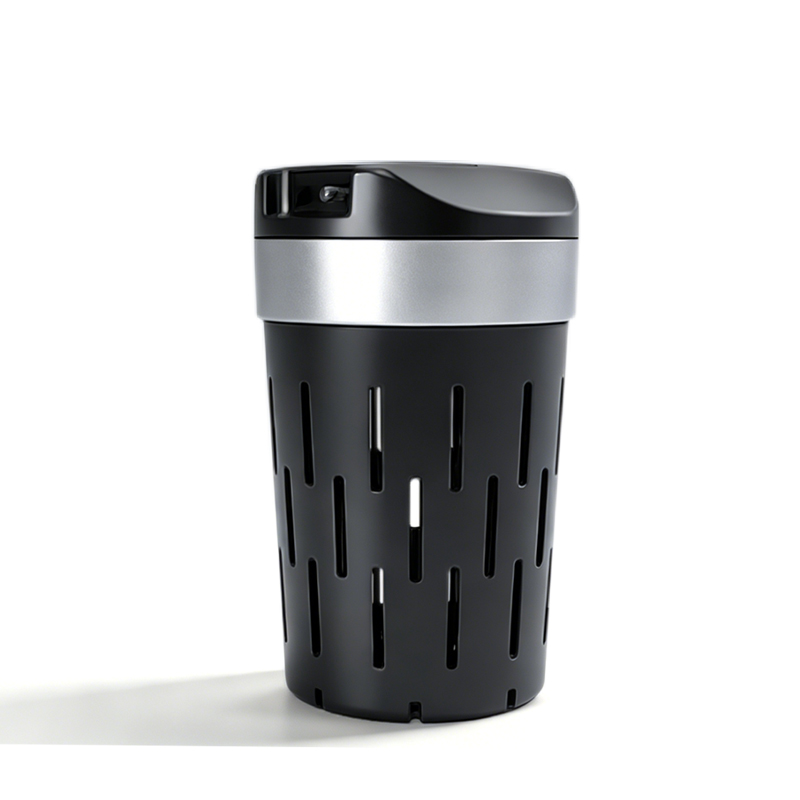

Model:FT-BY3
Brand:tianqiong
1、Termite Monitoring and Control System Product Applications
Termite Monitoring and Control System provides real-time monitoring for termite control, enabling the complete eradication of termite colonies.BY3 is a termite monitoring and control system that integrates visualization and remote extermination. Through cutting-edge technologies such as termite attraction technology, visual data acquisition, 4G high-speed transmission, and AI intelligent recognition, it achieves real-time monitoring and precise extermination of termites. It utilizes big data models to locate and identify termite nests, providing protection and eliminating potential hazards in areas such as reservoir dams. The termite visualization system integrates intelligence and automation into termite control, offering a more advanced solution to the problem of termite damage. It also allows for understanding the termites' living environment and activity patterns through temperature, humidity, and time distribution, enabling early intervention. The visualization equipment provides a more intuitive experience, solving the problem of false alarms associated with traditional equipment, reducing labor costs, and achieving more efficient termite prevention and control.
2、Termite Monitoring and Control System Product Features
Real-time Monitoring and Early Warning: Video AI and biosensing technology monitor termite activity in real time, enabling early detection, early warning, and early intervention to prevent further spread.
Intelligent Analysis and Strategy Formulation: The intelligent center analyzes data and develops personalized extermination strategies for efficient termite control and resource savings.
Automated Extermination: 24/7 automated extermination equipment reduces the need for manual labor, improves efficiency, and minimizes human error.
Data-Driven Scientific Control: Big data analysis of termite behavior and nest location provides a scientific basis for control strategies.
Environmentally Friendly and Precise Application: Environmentally friendly pesticides are applied precisely, ensuring the environmental friendliness, safety, and sustainability of the control efforts.
3、Termite Monitoring and Control System Main Applications:
Water conservancy dams, river embankments, landscaping, building construction, villa communities, historical and cultural buildings.
4、Termite Monitoring and Control System Technical Parameters
| Equipment type | Underground type |
| Communication module | 4G Wireless Communication Module |
| Battery life | Low power consumption mode lasts for 2 years; battery is detachable and can be charged and reused; optional solar charging module for lasting battery life. |
| Communication protocol | Private protocol |
| Protection level | IP68 grade |
| Location | GPS/IP/A-GPS/Cell Tower |
| Working temperature | -20℃-70℃ |
| Temperature accuracy | ±1℃ |
| Case material | Environmental PA |
| Case tensile strength | ≤80MPa |
| Case bending strength | ≤100MPa |
| Case impact strength | ≤15KJ/㎡ |
| shell thickness | 3mm |
| Camera resolution | 2 million |
| Defogging function | There is |
