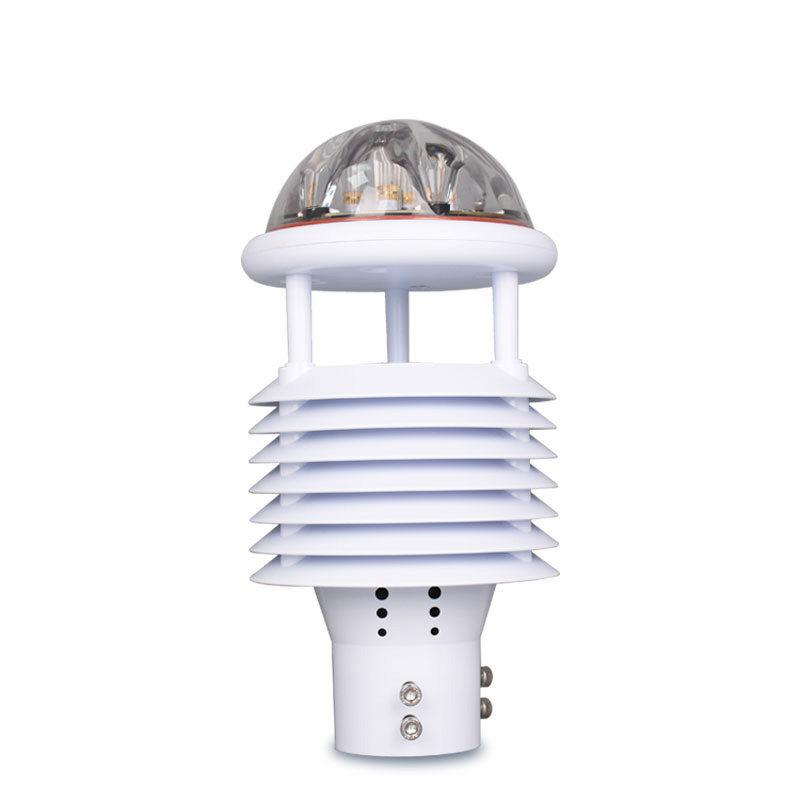

All-in-One Weather Sensors

1.Product introduction of All-in-One Weather Sensors

All-in-One Weather Sensors is a compact all-in-one weather sensor that includes measurement functions for meteorological elements such as temperature, humidity, air pressure, wind speed and direction, etc.Shandong Fengtu IoT Technology Co., Ltd., as an enterprise specializing in the research, development, production and sales of micro meteoroscopes, has always been committed to the promotion and application of micro meteoroscopes and meteorological environment solutions.With a complete production chain, strong technical team and comprehensive marketing team, we have developed and produced meteorological products such as ultrasonic wind speed wind meter, five-element micrometeoroscope, six-element micrometeoroscope and small automatic weather station, which have been widely used in In the fields of meteorological monitoring, urban environmental monitoring, wind power generation, navigation and ships, aviation airports, bridges and tunnels, customers are spread all over the country and have achieved good social and economic benefits.

Compared with traditional micro meteoroscopes, our products overcome the demand for high-precision timers and avoid inaccurate measurement problems caused by sensor startup delay, demodulation circuit delay, and temperature changes.

All-in-One Weather Sensors innovatively implements air temperature, air humidity, atmospheric pressure, wind speed, wind direction, PM2.5, PM10, noise, optical rainfall, and light through a high-integration structure to realize outdoor meteorological parameters.24-hour continuous online monitoring, and ten parameters are output to the user at one time through the digital communication interface.

2.Product features of All-in-One Weather Sensors

1.The hidden ultrasonic probe on the top cover avoids interference from rain and snow accumulation and avoids natural wind shading (Utility model patent, patent number ZL 2020 2 3215713.X)☆

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5)☆

3.Integrated ten elements of temperature, humidity, atmospheric pressure, wind speed, wind direction, PM2.5, PM10, noise, optical rainfall, and light (utilitary patent, patent number ZL 2020 2 3215649.5)☆

4.Adopt advanced sensing technology, real-time measurement, no starting wind speed☆

5.Strong anti-interference ability, with watchdog circuit, automatic reset function, ensuring stable operation of the system

6.High integration, no moving parts, zero wear

7.Maintenance-free, no on-site calibration required

8.Use ASA engineering plastics for outdoor applications without changing color all year round

9.The output signal of the product design is standard as RS485 communication interface (MODBUS protocol); optional 232, USB, and Ethernet interfaces, supporting real-time data reading☆

10.Optional wireless transmission module, minimum transmission interval of 1 minute

11.The probe is designed with snap-on type, which solves the problem of inaccurate loose transportation and installation process☆

3.All-in-One Weather Sensors Technical Parameters

1.Wind speed: measurement principle ultrasonic wave, 0~60m/s (±0.1m/s) resolution 0.01m/s; (Invention patent, Patent No.ZL 2021 1 0237536.5)

2.Wind direction: measurement principle ultrasonic wave, 0~360° (±2°); resolution: 1°; (Invention patent, patent number ZL 2021 1 0237536.5)

3.Air temperature: measurement principle diode junction voltage method, -40-60℃ (±0.3℃), resolution 0.01℃; (Calibration certificate of Beijing Meteorological Bureau)

4.Air humidity: measurement principle capacitive type, 0-100%RH (±3%RH), resolution: 0.1%RH; (Calibration certificate of Beijing Meteorological Bureau)

5.Atmospheric pressure: measurement principle piezoresistive type, 300-1100hpa (±0.25%), resolution 0.1hpa; (Calibration certificate of Beijing Meteorological Bureau)

6.PM2.5: 0-1000ug/m3 (±10%)

7.PM10: 0-1000ug/m3 (±10%)

8.Noise: 30-120dB (±1.5dB)

9.Light: 0-157286LUX (＜±3%)

10.Optical rainfall: 0-4mm/min (≤±4%)

11.Power: 0.84W

12.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification☆

13.The manufacturer has a computer software registration certificate☆

14.The manufacturer is a 3A-level credit enterprise☆

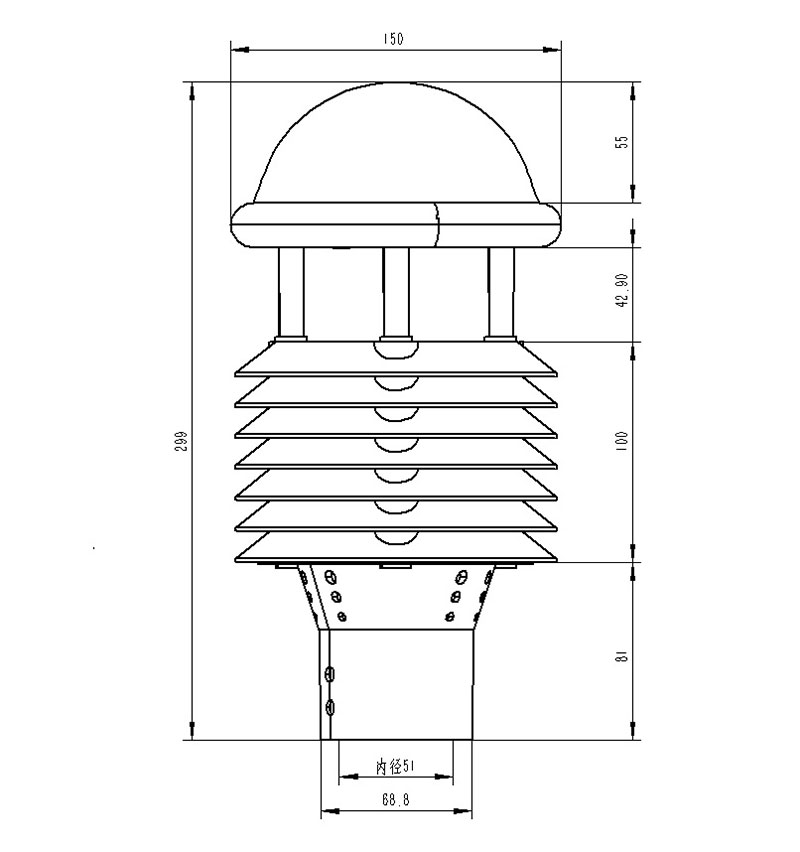

4.All-in-One Weather Sensors product size diagram

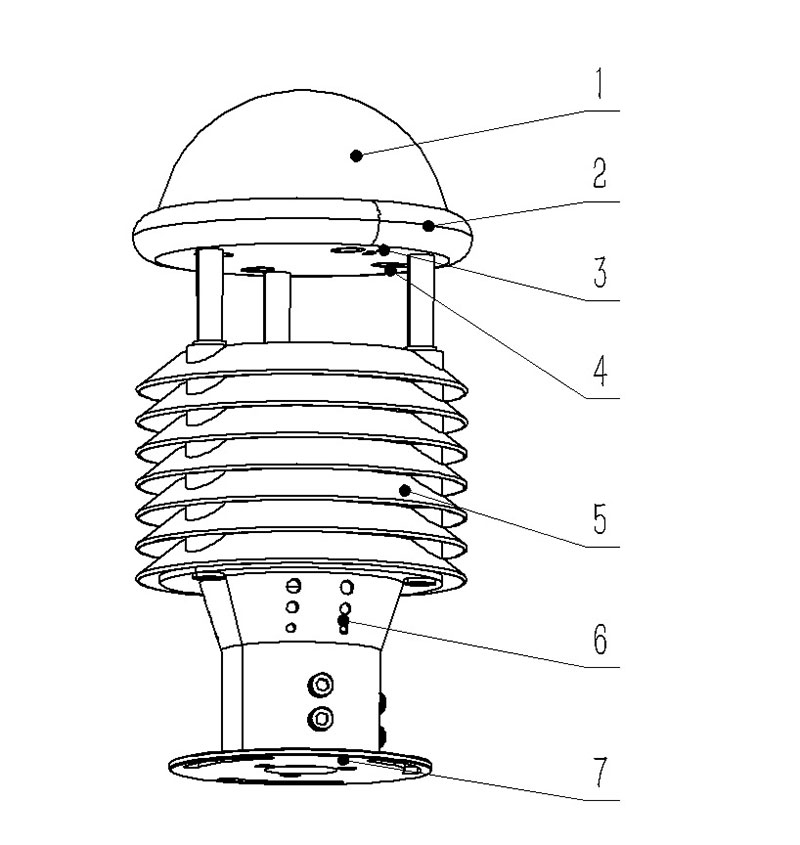

5.All-in-One Weather Sensors product structure diagram

1.Optical rainfall and light sensor

2.Control circuit

3.Pointing to the north arrow

4.Ultrasonic wind speed and direction

5.Louver box PM2.5, PM10

6.Temperature, humidity, air pressure, noise monitoring location

7.Bottom fixing flange

6.All-in-One Weather Sensors product wiring definition
