Grass temperature sensor

Grass temperature sensor Product Introduction

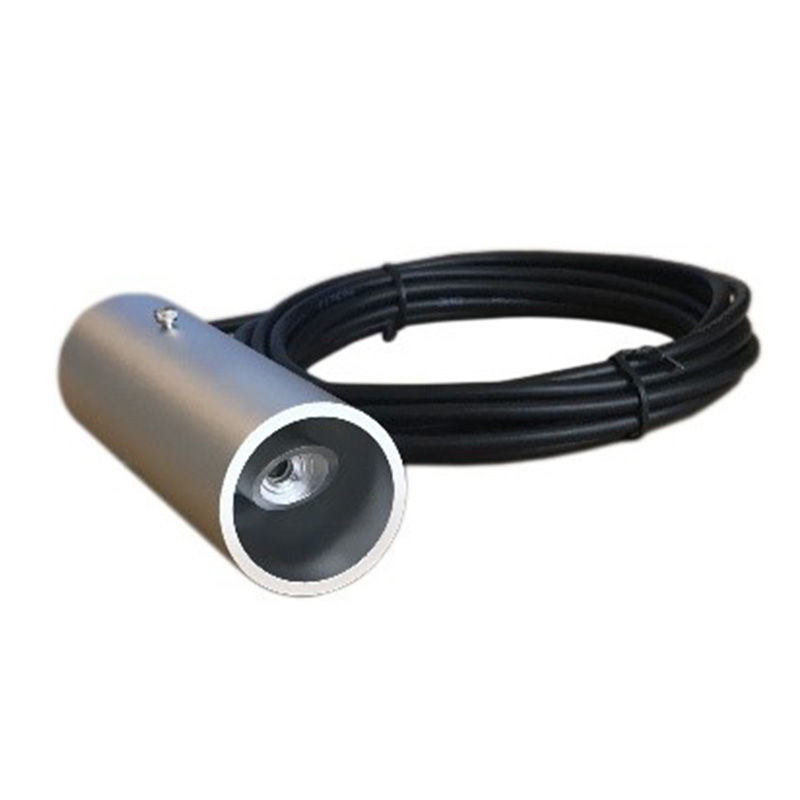

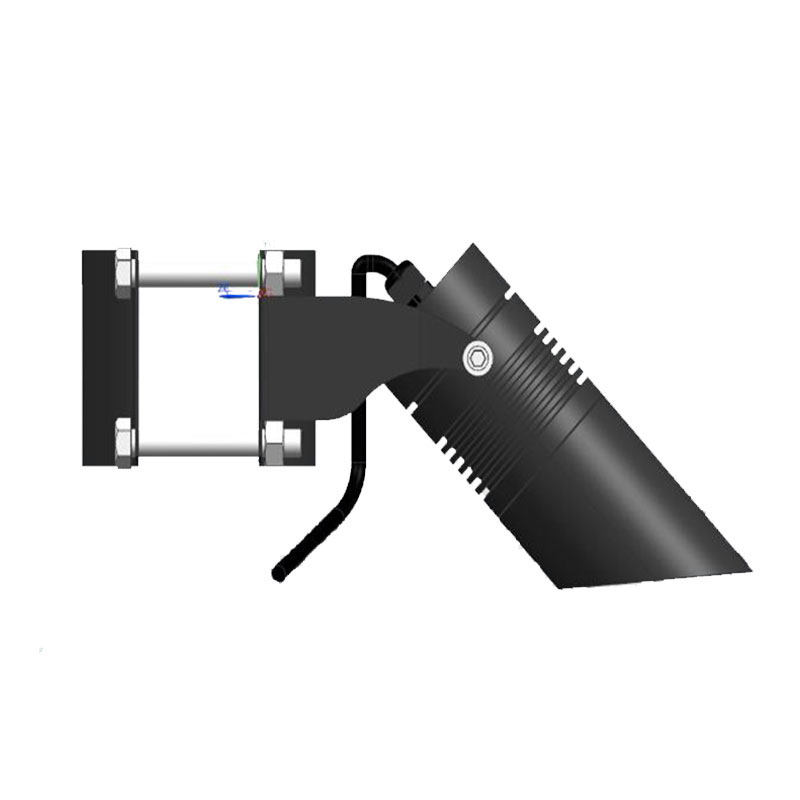

Grass temperature sensor is simply dropped into the ground next to your plants and reliably records the temperature at grass height, providing accurate temperature readings.Grass temperature sensor is an integrated infrared thermometer. The optical system and electronic circuitry are integrated within a metal housing. The protective cover is easy to install, and the 90° adjustable bracket allows for installation and uninterrupted measurement under various field conditions.

Internally, the Grass temperature sensor consists of a thermopile and a thermistor. All objects continuously emit infrared radiation energy into the surrounding space. By measuring the infrared energy emitted by an object, its surface temperature can be accurately determined; this is the principle of non-contact infrared thermometry. The infrared thermometer can calculate the surface temperature of an object without any contact with the target, by measuring the intensity of the infrared radiation emitted by the target—this is its greatest advantage.

Grass temperature sensor Applications

Long-distance measurement of highway pavement temperature

Bridge deck temperature monitoring

Plant canopy temperature monitoring

Grass temperature, soil surface temperature, or snow surface temperature monitoring

Grass temperature sensor Technical Specifications

Measurement Range: -40℃—125℃

Measurement Accuracy: ±1% or ±1℃

View Angle: D:S=11:1

Display Resolution: 0.01℃

Response Time: 1 second

Operating Wavelength: 8—14um

Output Method: RS485

Communication Protocol: ModBus RTU

Operating Conditions: -40—85℃; 0—100%RH

Power Supply: DC12-24V

Power Consumption: <5W
