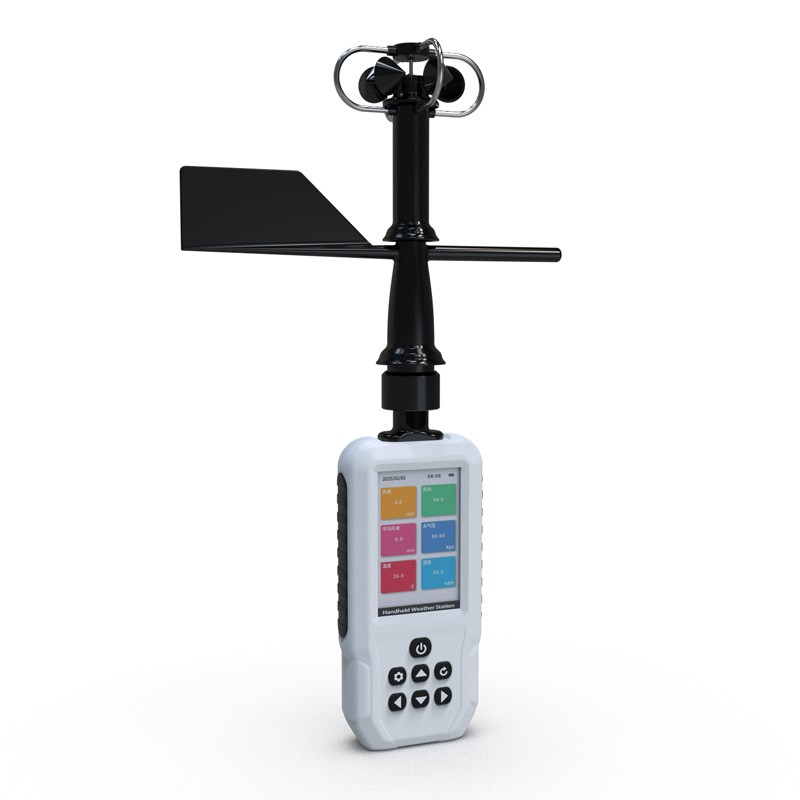

Analysis of the Field Data Acquisition Capabilities of a High-Precision Handheld 11-Element Weather Station

The high-precision handheld 11-element weather station is a portable meteorological observation device integrating wind speed, wind direction, temperature, humidity, atmospheric pressure, altitude, thermal index, wet-bulb temperature, wave height, and GNSS positioning. It is suitable for field data acquisition and monitoring in meteorology, environmental protection, agriculture and forestry, and scientific research.

The high-precision handheld 11-element weather station is a portable device integrating multiple meteorological parameter measurement functions. It can simultaneously monitor and record 11 key meteorological elements, including wind speed, wind direction, average wind speed, temperature, humidity, atmospheric pressure, altitude, thermal index, wet-bulb temperature, wave height, and GNSS tri-mode positioning. The system uses precision sensors and intelligent chips to ensure the accuracy and reliability of the measurement data. This equipment is widely used in meteorological observation, environmental protection, airport operations, agricultural and forestry production, hydrological monitoring, military support, warehouse management, and scientific research.

In terms of hardware configuration, the weather station is equipped with a 3.5-inch LCD screen, which can clearly display real-time data of various meteorological elements. The built-in electronic compass enables 360-degree wind direction monitoring and supports switching between automatic and manual wind direction reading. Powered by a 3800mAh lithium battery, its low-power design allows for 18 hours of continuous operation, meeting the needs of extended fieldwork. Its scientifically designed structure results in a lightweight unit weighing only 363.2 grams, making it easy to carry.

Data storage and communication are key features of this device. A built-in high-capacity FLASH memory chip can store up to 40,000 meteorological data entries, with data recording intervals flexibly set between 1 and 60 minutes. A Type-C communication interface allows users to easily access internally stored data for further processing and analysis. The GNSS tri-mode positioning function offers high accuracy and speed, and users can also select a single BeiDou positioning mode as needed. An external DTU-4G module supports data upload to a cloud platform, and the 4G module allows for easy replacement of the IoT card, enabling remote real-time data monitoring. Furthermore, an optional tripod is available to adapt to different observation scenarios.

In practical applications, this weather station provides on-site observation data support for meteorological departments, helping farmers monitor field weather conditions in real time to optimize irrigation and fertilization plans, and quickly obtain on-site weather data to assist in disaster relief decision-making. Before using the equipment, it is recommended to calibrate the barometric pressure sensor using a standard pressure source and verify the wind speed measurement accuracy using a known wind speed environment to avoid parameter deviations caused by transportation vibrations. With its portability, multifunctionality, and data reliability, the high-precision handheld 11-element weather station has become a practical tool in various on-site weather monitoring scenarios.
