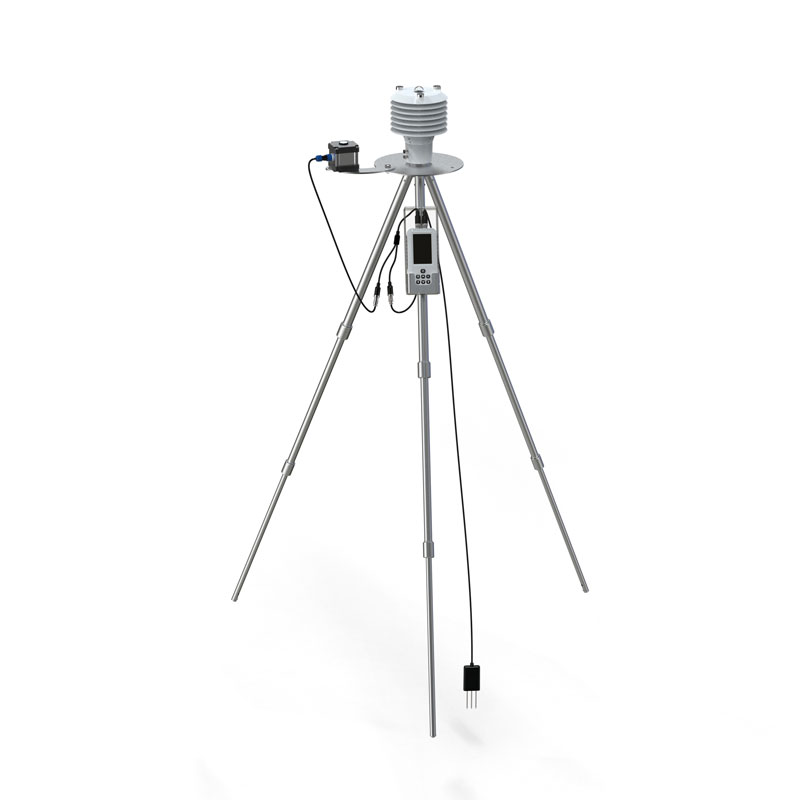

Handheld Weather Monitor System

1、Handheld Weather Monitor System Device Description

Handheld Weather Monitor System is designed for professionals who need to measure weather conditions in the field, providing accurate temperature, humidity, and environmental readings.Handheld Weather Monitor System is an integrated handheld agricultural environment and meteorological multi-element monitoring terminal. It adopts industrial-grade precision sensors, intelligent processing chips, and a modular expansion architecture, specifically designed for modern agriculture (field fields/greenhouses/orchards/nurseries), forestry ecology, meteorology and environmental protection, water conservancy and hydrology, geological exploration, dryland water-saving irrigation, plant cultivation, scientific research and teaching, field emergency surveys, third-party testing, and soil surveys. It can simultaneously monitor eight environmental parameters: air temperature, air humidity, light intensity, carbon dioxide, dew point temperature, photosynthetically active radiation, soil temperature, and soil moisture. Integrating real-time measurement and local storage, it meets the needs of various scenarios such as mobile inspection, fixed-point observation, data traceability, and project acceptance. It features portability, durability, accurate measurement, strong expandability, and simple operation.

2、Handheld Weather Monitor System Technical Specifications

Air Temperature Range: -40-80℃; Accuracy: ±0.3℃ (25℃); Resolution: 0.01℃

Air Humidity Range: 0-100%RH; Accuracy: ±3%RH (20%~80%); Resolution: 0.01%RH

Light Intensity Range: 0-157286 lux; Accuracy: <±3%; Resolution: 1 lux

Carbon Dioxide Measurement Range: 400-5000ppm; Accuracy: ±(50ppm + 5% of reading); Resolution: 1ppm

Dew point temperature range: 0~+70℃; Accuracy: ±1℃; Resolution: 0.1℃

Photosynthetically active radiation range: 0-2000W/m²; Accuracy: <±3%; Resolution: 1W/m²

Soil temperature range: -30～+70℃; Accuracy: ±0.3 (-10~50℃); Resolution: 0.01℃

Soil moisture range: 0～100%; Accuracy: ±3% (loam). High organic matter soils (soil organic carbon content >12%) and high clay content soils (clay content >45%) may require calibration for specific soil types due to their dielectric relaxation characteristics; Resolution: 0.01%.

3、Handheld Weather Monitor System Equipment Functions and Performance Characteristics

1. Measurement and Expansion Capabilities: Supports simultaneous measurement with multiple sensors, ensuring accuracy without interference. Sensors are automatically recognized upon plug-and-play, with universal and interchangeable interfaces. Up to 32 types of sensors can be added. Main unit IP65/electrode IP68 protection. Supports flexible multi-channel configuration.

2. Data Acquisition and Storage: Supports manual acquisition and timed automatic acquisition. Recording interval is adjustable from 1 to 60 minutes. Built-in Flash storage: 280 million data points per parameter. Supports automatic power-off protection. Standard 4GB memory card/external SD card for unlimited large-capacity storage. Supports direct export via USB/data cable/USB flash drive, compatible with Excel, spreadsheets, and curve formats.

3. Positioning and Traceability: Built-in GPS module automatically binds data to latitude and longitude coordinates. Supports display of measurement point geographic location, meeting the requirements of grid-based monitoring and traceability.

4. Human-Machine Interaction and Safety: High-definition Chinese LCD screen, supports Chinese/English switching, real-time display of parameters, time, storage capacity, power consumption, and point location information. Low-power system design with system monitoring, anomaly protection, and anti-crash features.

5. Power Supply and Battery Life: Built-in 3.7V 3.8AH lithium battery, suitable for long-term unattended operation in the field.

6. Structure and Environmental Adaptability: Integrated aluminum alloy tripod with retractable structure design, compact size, easy to carry, working environment: -10℃～60℃; 5%RH～95%RH (non-condensing). Industrial-grade durable design, suitable for long-term and frequent use in the field. Comes with standard packaging, strong protection, easy to transport and store.
