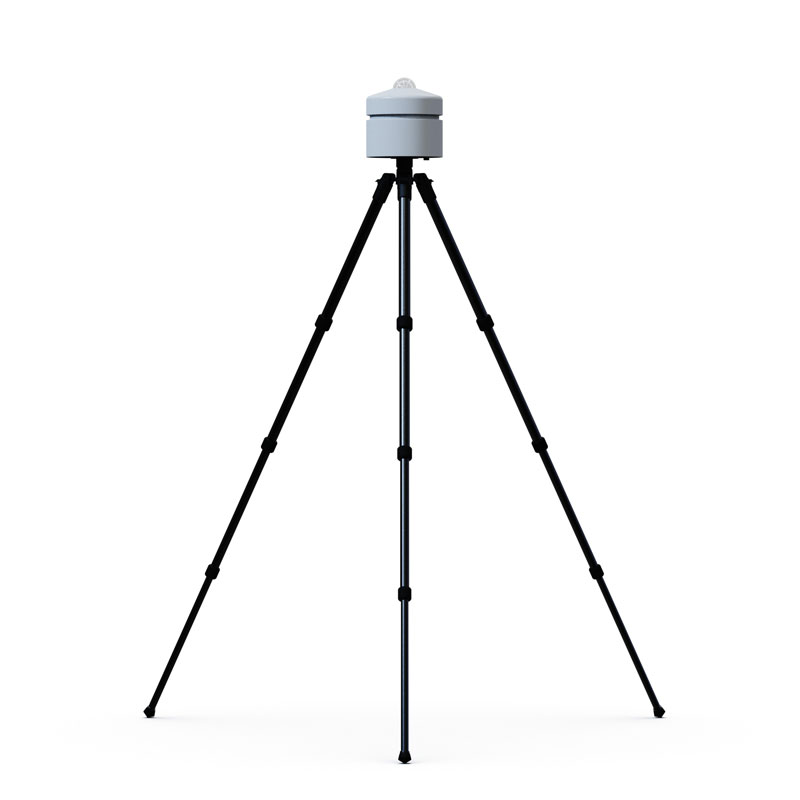

Bridge icing sensor

1.Introduction to Bridge icing sensor product

Bridge icing sensor is a new real-time active ice warning system for bridge decks, designed to measure the ice thickness on bridges.Bridge icing sensor uses microwave disturbance technology to monitor the icing information in the sensor-sensitive area based on the microwave disturbance signal's feedback signals of different substances such as ice, water, and air.The icing thickness is calculated based on the strength of the signal and the distribution information of the icing in the sensor-sensitive area.The icing alarm value can be set according to different icing thickness information to facilitate the start of the deicing system.

2.Bridge icing sensor product features

Adopt microwave disturbance technology

Suitable for cables of all specifications

Simulated cable icing monitoring

Small structure, light weight, easy to install

High-precision icing detection, analysis and calculation of percentage unit length

Monitor the icing situation in real time and start the deicing system in time

Protect the safe operation of cables, improve transmission efficiency, and reduce cable freezing accidents

3.Bridge icing sensor technical parameters

Working voltage: 9 VDC~24 VDC

Ice detection range: 0.5mm~30mm

Minimum icing thickness: 0.5mm

Resolution: 0.1mm

Maximum icing thickness: 10mm

Ice alarm thickness value: 0.5~30mm (adjustable)

Communication method: RS485 (Modbus-RTU)

Working temperature: -40℃~85℃

Storage temperature: -55℃~85℃

Working humidity: 0~100%RH

Protection level: IP67

Electromagnetic compatibility: lightning protection, electromagnetic interference protection design

IV.Application fields

Fan blades are frozen

Chassis icing

Cooling tower

Outdoor cable

Outdoor communication antenna

Outdoor Instruments and Equipment
