Model:FT-WQX10C
Brand:tianqiong

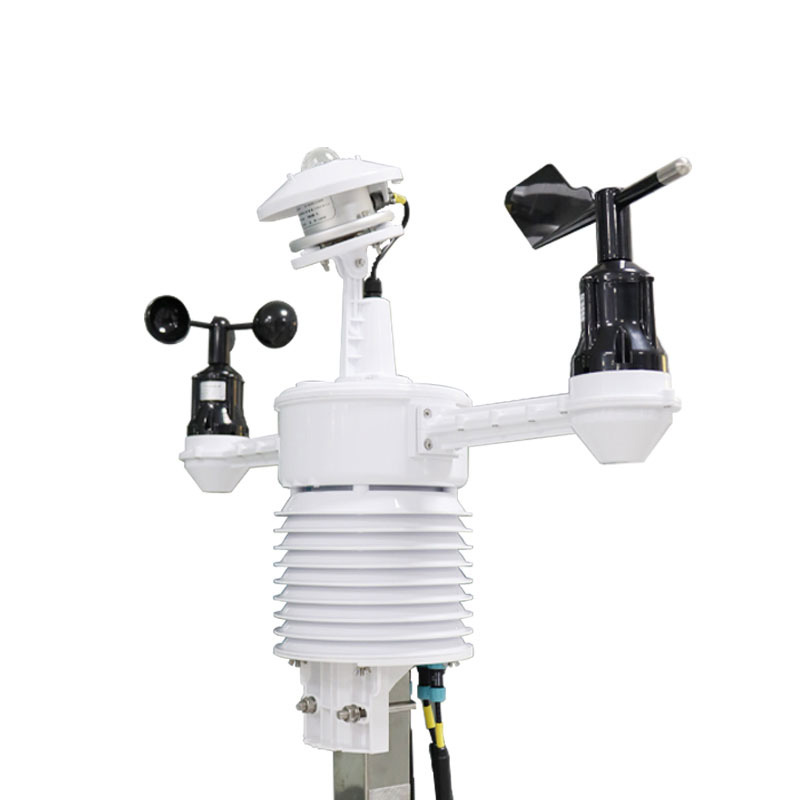

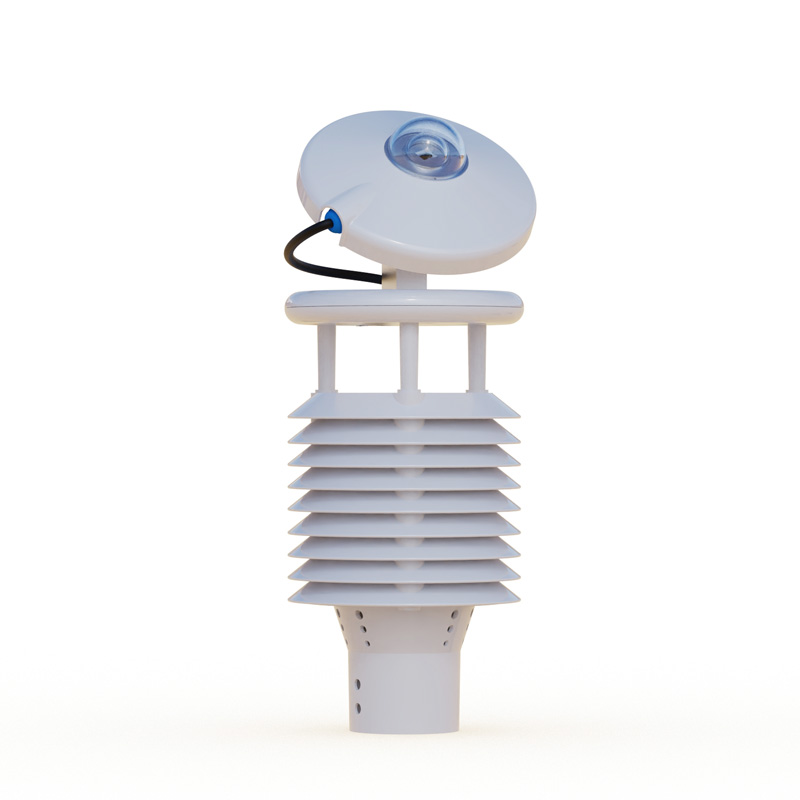

1.Environmental monitoring solutions for PV Systems Product Overview
Environmental monitoring solutions for PV Systems monitor weather parameters through weather stations to accurately evaluate the operating efficiency of photovoltaic systems.Meteorological environmental data is an important indicator to determine solar power generation and plays a decisive role in the quality of solar power generation.At the same time, it also provides effective data guarantee for the design of solar power stations.Our Environmental monitoring solutions for PV Systems is a new generation of integrated meteorological environmental monitoring station designed and produced in accordance with the International Meteorological WMO Organization Meteorological Observation Standards and IEC (International Electrotechnical Technical Committee) standards.
The meteorological data that can be monitored by this system include: ambient temperature, ambient humidity, atmospheric pressure, wind speed, wind direction, total thermal and electrical radiation, total daily cumulative radiation, total monthly cumulative radiation, total annual cumulative radiation, peak sunshine hours and other meteorological data.It has the characteristics of stable performance, high detection accuracy, and unattended, and can meet the business requirements of professional meteorological observation.
2.Environmental monitoring solutions for PV Systems product features
1.Real-time data monitoring: More than 10 types of meteorological data in the photovoltaic area can be collected and analyzed, including ambient temperature, ambient humidity, atmospheric pressure, wind speed, wind direction, total thermal and electrical radiation, total daily cumulative radiation, total monthly cumulative radiation, total annual cumulative radiation, peak sunshine hours and other monitoring data.
2.High-precision time proofreading: The integrated photovoltaic environmental data collector adopts a new generation of 32-bit MCU processor, and the on-board integrated high-precision GPS can accurately correct the acquisition time and perform high-precision positioning.The transmission protocol is the standard MODBUS protocol.
3.High-quality imported devices: Ambient temperature and humidity, atmospheric pressure, and internal core devices of radiation sensor are all imported from Europe and the United States to ensure high accuracy and high stability of data sources.
4.Integrated data output method: Multi-sensor parameters are fused, and the same address output method can be used.All data of the sensor can be obtained with one instruction.
5.Integrated sensor: The re-optimized integrated observation bracket can support circular tube installation, which is small in size and light in weight, so that on-site personnel can quickly, conveniently and simply install and debug equipment in one person.
3.Environmental monitoring solutions for PV Systems technical indicators
Technical parameters | Measurement range | Resolution | Accuracy | unit |
Ambient temperature | -40~80 | 0.1 | ±0.3 | ℃ |
Ambient humidity | 0~100 | 0.1 | ±2 | %RH |
Atmospheric pressure | 300~1100 | 0.1 | ±0.12 | hPa |
Wind speed | 0~60 | 0.1 | ±0.1m/s+0.01V | m/s |
wind direction | 0~360 | 1 | ±2 | ° |
Total thermal radiation | 0~2000 | 1 | ±3% | W/m2 |
Total radiation day cumulative | 0~600 | 0.01 | --- | MJ/m2 |
Total radiation months cumulative | 0~60000 | 1 | --- | MJ/m2 |
Total radiation year cumulative | 0~60000 | 1 | --- | MJ/m2 |
Peak sunshine hours | 0~24 | 0.01 | --- | h |
power supply | DC12V/70mA | |||
communication | RS485 | Communication distance 0~100m | Standard Modbus communication mode |
