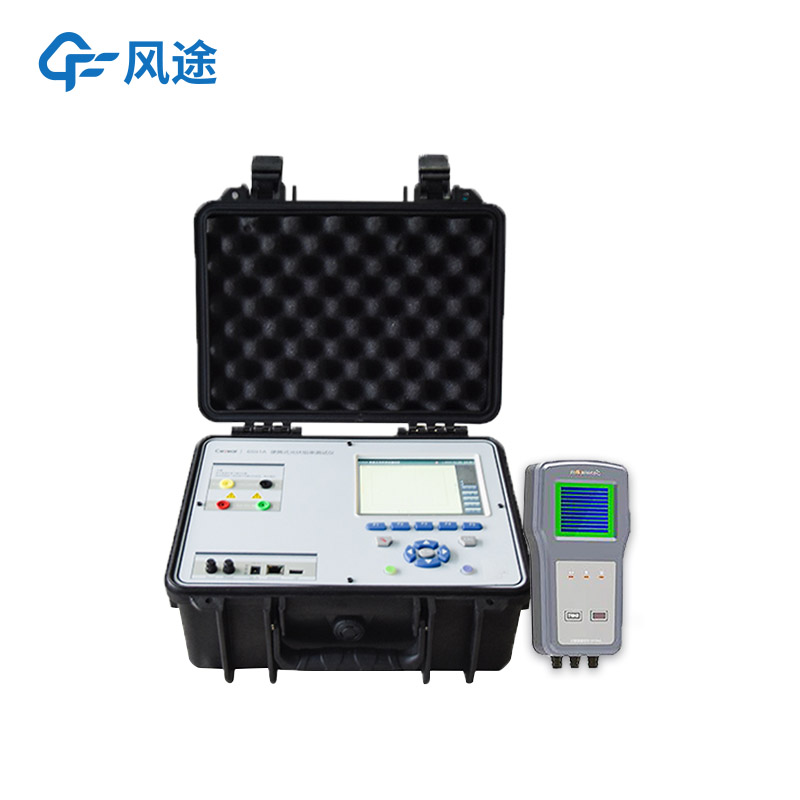

Portable IV Curve Tester: The "Stethoscope" for Photovoltaic Power Station Diagnostics

The Portable IV Curve Tester is known as the "stethoscope" of power stations, capable of accurately diagnosing the operational status of power stations.

The working principle of the Portable IV Curve Tester is based on the photovoltaic effect and basic circuit principles. When light shines on a photovoltaic module, photons interact with semiconductor materials to generate electron-hole pairs, which form an electric current under the action of an internal electric field. The tester adjusts the voltage gradually from open circuit to short circuit by changing the load across the photovoltaic module, while accurately measuring the corresponding current values. These data points are finally plotted into an IV curve, which intuitively shows the current-voltage relationship of the photovoltaic module under different conditions.

In the daily operation and maintenance of power stations, the Portable IV Curve Tester can detect faults. When there is an abnormality in the power generation of a power station, it may be that one or a string of components among many is faulty. Manual inspection of each component one by one is extremely inefficient and difficult to locate accurately. At this time, the tester can come into play.

For example, if the open-circuit voltage of a string's IV curve is significantly lower than that of the normal standard curve, it is likely that there is a poor connection in the string, such as loose wiring in the junction box, which increases resistance and affects the overall voltage output. If the short-circuit current is lower than the normal range, it may be that the internal cells of the module have hidden cracks or damage, preventing part of the current from being effectively output. More complex problems can also be diagnosed by analyzing the shape of the curve. If the curve is step-like, it often indicates that there is a mismatch in the performance of the components in the string. This may be due to differences in aging degrees and lighting conditions among different components, leading to inconsistent output characteristics, which creates a "barrel effect" in the overall string and restricts power generation efficiency.

In addition to troubleshooting, the Portable IV Curve Tester can also assist in the performance evaluation and optimization of power stations. Regular IV curve tests on components in various areas of the power station, and comparison of data from different time periods, can monitor the trend of component performance degradation. If it is found that the IV curves of components in a certain area are generally moving downward and the power output is continuously decreasing, it may be that the area has been blocked by dust, bird droppings, etc. for a long time, or that the components are aging faster due to environmental factors. Based on these data, operation and maintenance personnel can formulate targeted cleaning plans, arrange component replacement, or adjust the power station layout to improve the overall power generation efficiency and stability of the power station.
