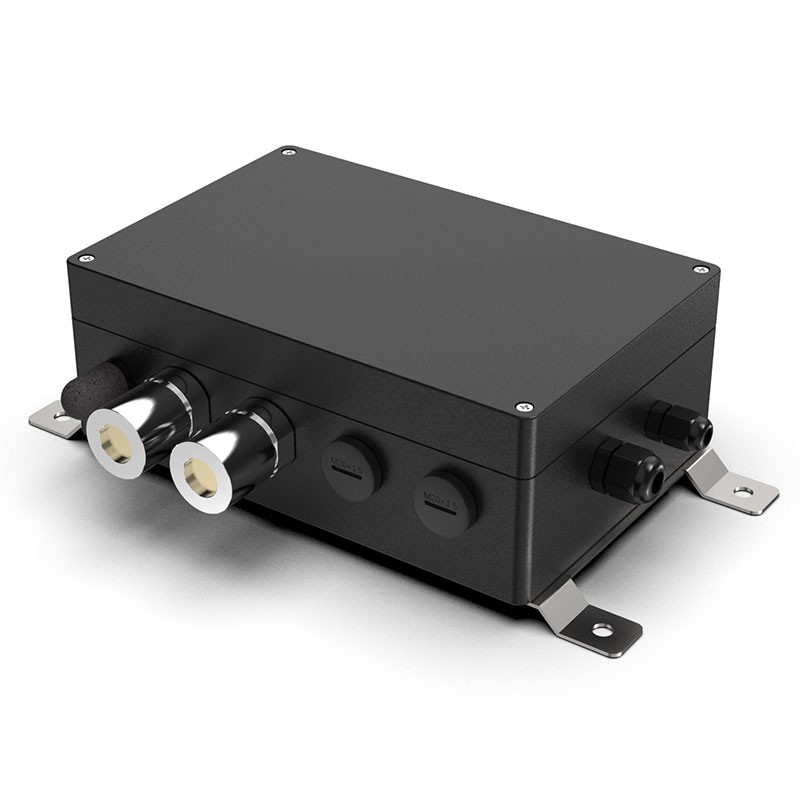

Tunnel Nitrogen Oxides Detector

1.Tunnel Nitrogen Oxides Detector Product Overview

Tunnel Nitrogen Oxides Detector is a compact electrochemical gas sensor suitable for continuous monitoring of nitrogen dioxide and nitric oxide in tunnel environments.Tunnels are special tubular structures. Due to their small size and enclosed nature, vehicles passing through tunnels emit large amounts of toxic and harmful gases. If these gases are not promptly and properly released, they can cause excessive levels of nitrogen oxides (NOx) and other toxic gases, potentially seriously endangering the safety of personnel and vehicles within the tunnel. Tunnel Nitrogen Oxides Detector is a gas environment monitoring device specifically designed for tunnel environments. It can accurately and in real-time detect the concentrations of nitrogen dioxide (NO₂) and nitric oxide (NO) within the tunnel, as well as monitor temperature and humidity. By monitoring NOx levels around the clock, it allows for timely activation of forced ventilation fans, ensuring driving safety. The tunnel NOx detector employs a high-sensitivity sensor and a waterproof housing design, enabling stable operation even in harsh tunnel conditions. It collects NOx levels online, meeting the requirements of the "Highway Tunnel Ventilation and Lighting Design Specifications," providing reliable data support for tunnel construction, operation, and emergency response, and reducing the hazards of toxic gases within tunnels.

2.Tunnel Nitrogen Oxides Detector Product Function Introduction

NOx and Environmental Element Monitoring

Continuously measures the content of NO, NO2, and other gases in tunnels online, and detects tunnel temperature and humidity.

Automatic Zero-Point Calibration

Features zero-point tracking self-calibration and temperature compensation, ensuring accurate and reliable sensor data.

24/7 Online Monitoring

Achieves real-time continuous monitoring of harmful gas concentrations and ambient temperature and humidity in tunnels.

Standardized Industrial Interface

Integrates an RS485 communication interface and a 4~20mA analog output interface, supporting remote data transmission and management.

Flexible System Linkage Capability

Provides multiple expansion interfaces, enabling linkage with alarm systems and other systems for unified intelligent management.

3.Tunnel Nitrogen Oxides Detector Product Features

The instrument adopts an integrated structural design, making it compact and small, with small sensor size for easy installation;

Specifically designed for harsh tunnel environments;

Low power consumption design ensures stable and reliable operation;

The instrument has lightning protection measures, with both its communication and power interfaces featuring lightning protection design to minimize damage from lightning strikes.

4.Tunnel Nitrogen Oxides Detector Key technical indicators
