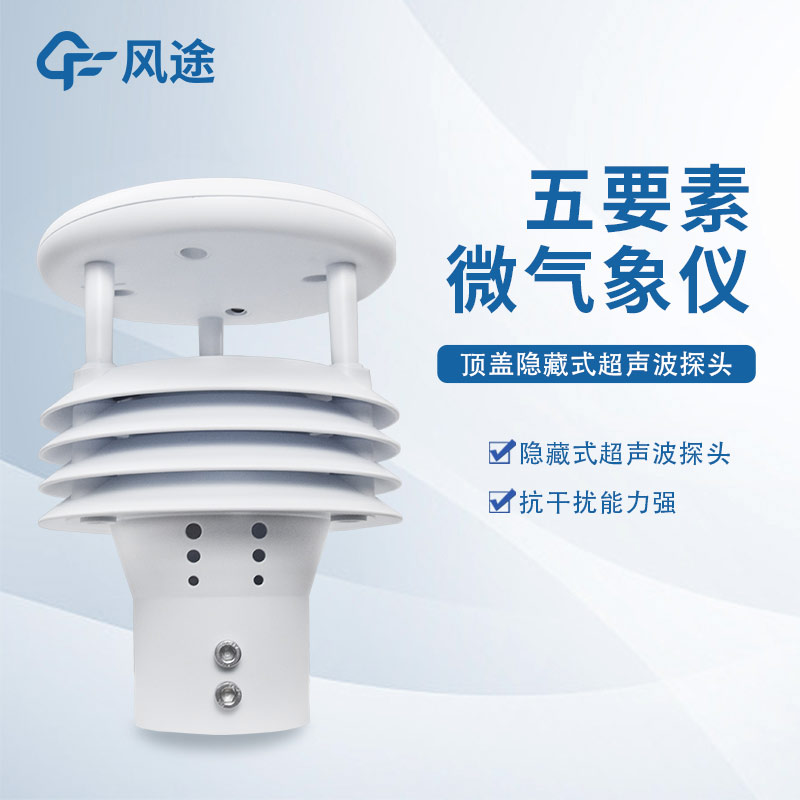

FT-WQX5 5-in-1 Compact Weather Sensor: Integrated Precision for Environmental Monitoring

FT-WQX5 5-in-1 Compact Weather Sensor is an efficient tool in the field of environmental monitoring, capable of simultaneously monitoring five key meteorological parameters: ambient temperature, relative humidity, wind speed, wind direction, and atmospheric pressure.

The instrument adopts an integrated design. Compared with traditional combinations of independent instruments, this design not only significantly saves installation space but also greatly simplifies wiring and calibration processes, significantly improving installation efficiency. Its high-precision sensors serve as the core guarantee for accurate measurements. The temperature sensor has a measurement range of -40°C to 80°C with an accuracy of ±0.3°C, ensuring stable operation even in extreme temperature difference environments. The capacitive humidity sensor covers a humidity range of 0-100% RH with an accuracy of ±3% RH, capable of capturing subtle humidity changes in real time. The piezoresistive pressure sensor can measure atmospheric pressure in the range of 300-1100 hPa, with an accuracy of ±0.5 hPa at 0-30°C, providing reliable data for weather forecasting. The wind speed and direction monitoring uses ultrasonic technology: the wind speed measurement range is 0-60 m/s with an accuracy of 0.1 m/s; the wind direction measurement is 0-360° with an accuracy of ±1°. The absence of mechanical components completely avoids wear errors, ensuring long-term measurement accuracy.

The instrument's housing is made of ASA engineering plastic, featuring anti-ultraviolet, anti-weathering, and anti-corrosion properties, enabling it to remain intact even in harsh weather conditions such as heavy rain and snow. The design of zero moving parts internally eliminates the need for on-site calibration, greatly reducing usage and maintenance costs.

It is standardly equipped with an RS485 communication interface supporting the MODBUS protocol, facilitating quick docking with various data acquisition devices. Optional interfaces such as 232, USB, and Ethernet are also provided, flexibly meeting the needs of different scenarios such as meteorological monitoring, urban environment, and wind power generation. With stable and reliable data output, it provides strong support for decision-making in multiple industries.
