Ground-based meteorological observation stations are suitable for various field meteorological monitoring scenarios

The ground-based meteorological observation station features a carbon fiber body, integrates a ten-element sensor module, and comes with multi-functional supporting equipment. It supports multi-mode data transmission and boasts high protection, high precision, and low power consumption. It can be quickly deployed and is suitable for field meteorological monitoring scenarios across multiple industries.

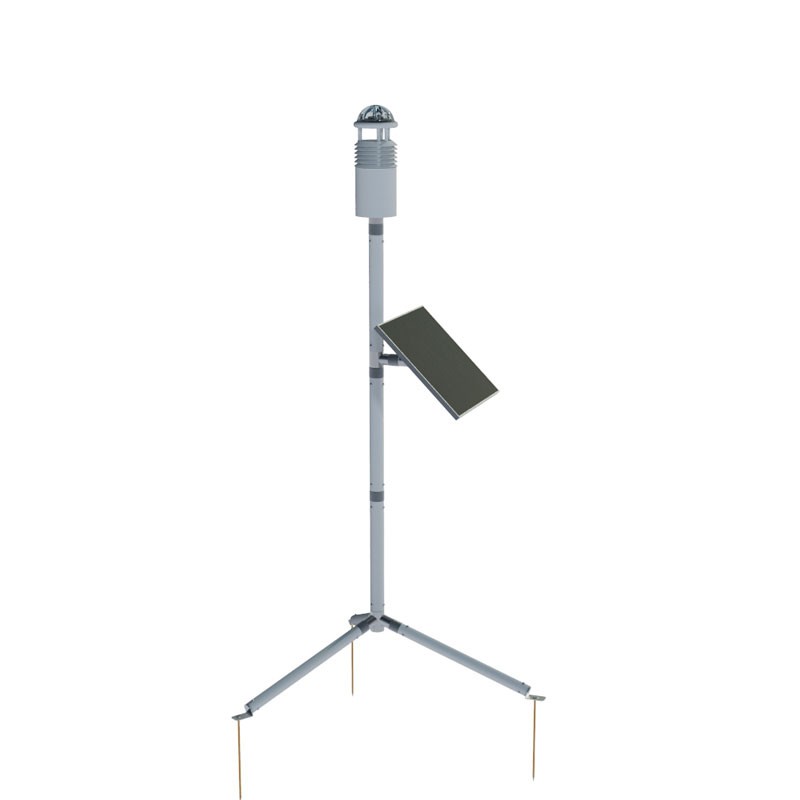

The ground-based meteorological observation station is a high-precision integrated meteorological monitoring device adapted to complex field conditions. Its core uses a carbon fiber main frame, which weighs only one-quarter of that of steel, yet has five times the structural strength. Balancing lightweight design with structural stability, it can withstand complex outdoor usage scenarios such as bumps and friction. The equipment overcomes the drawbacks of traditional meteorological equipment, being bulky and cumbersome to install. Through modular innovation, it integrates the meteorological monitoring unit, compass, data acquisition tablet, and entrenching tools—essential field tools—into a rolling case. Its compact size and easy mobility meet the needs of mobile and temporary outdoor meteorological monitoring operations.

The ground-based meteorological observation station is equipped with a ten-element integrated sensor, capable of simultaneously collecting real-time environmental meteorological data including wind speed, wind direction, temperature and humidity, air pressure, illumination, optical rainfall, PM2.5, PM10, and noise. The accuracy and resolution of all monitoring parameters meet high-precision industry standards. The equipment employs a top-cover concealed ultrasonic probe structure, effectively avoiding data deviations caused by rain and snow accumulation and natural wind obstruction. Utilizing continuous frequency conversion ultrasonic signals and phase detection principles, it ensures the stability and accuracy of wind field data acquisition. The sensor housing is made of imported ABS material, possessing excellent salt spray resistance, and the overall protection rating reaches IP65 or higher, allowing for continuous and stable operation in harsh outdoor environments.

The ground-based meteorological observation station supports three mainstream transmission methods: GPRS, Bluetooth, and 485 to USB, compatible with both wired and wireless data transmission modes. It requires no factory debugging and is ready for immediate use, significantly reducing the operational threshold and deployment time. Simultaneously, the equipment features low power consumption, with a battery life suitable for long-term field monitoring needs, enabling efficient completion of core tasks such as emergency short-term meteorological observations and mobile meteorological data collection. With its excellent comprehensive performance, this equipment is widely applicable to various fields such as meteorological exploration, agricultural and forestry planting, ecological and environmental protection, marine monitoring, airport and port operation and maintenance, scientific research and campus meteorological science popularization education, and is the core equipment for outdoor mobile meteorological monitoring.
